Selecting the Input Power VacPrep 061
1-6 Feb 2013

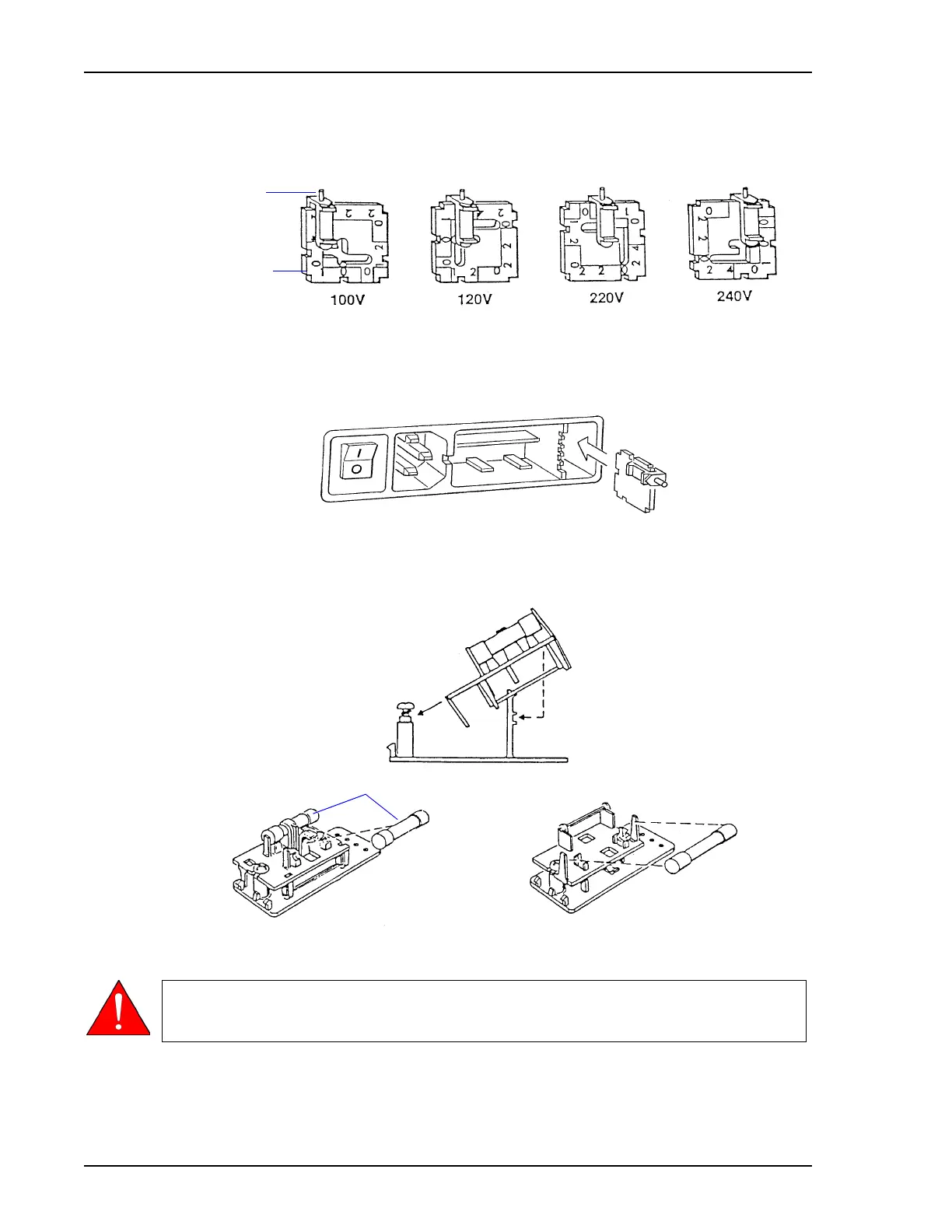

4. Orient the voltage selector card so that the desired voltage is indicated at the bottom.
Orient the indicator pin so that it points upward as shown in the following illustration.
5. Insert the voltage selector card into the power connector housing with the edge containing
the desired voltage first and with the printed side facing the POWER ON/OFF switch.
6. Fuse the power line according to local safety practices.
Fuse
Fuse
Fuses
Cover
Cover
Cover
Fuse Block
Fuse Block
Retaining Screw
Fuse Block
The power cord must be disconnected from the degasser when installing or replacing
fuses. Failure to do so could result in electrical shock.
