Rear Panel Connections VacPrep 061
1-8 Feb 2013
Rear Panel Connections
1. Insert one end of the power cord into the input power connector at the rear of the degasser
and the other end into the appropriate power source.
2. Attach an appropriate regulator to the gas bottle. Leave the gas bottle shut-off valve closed
until instructed otherwise.
3. If the regulator has a -in. outlet, proceed to Step 4. If the regulator has a -in. outlet, attach
the reducer fitting to the outlet of the regulator shut-off valve.
4. Tighten the regulator shut-off valve nut.
5. Attach the copper tubing to the brass reducer fitting.
When the VacPrep leaves the factory, stabilizing tubes are placed in heating stations 1
and 6 to prevent the heater block from shifting during shipment. Be sure to remove
these tubes before turning on the VacPrep.

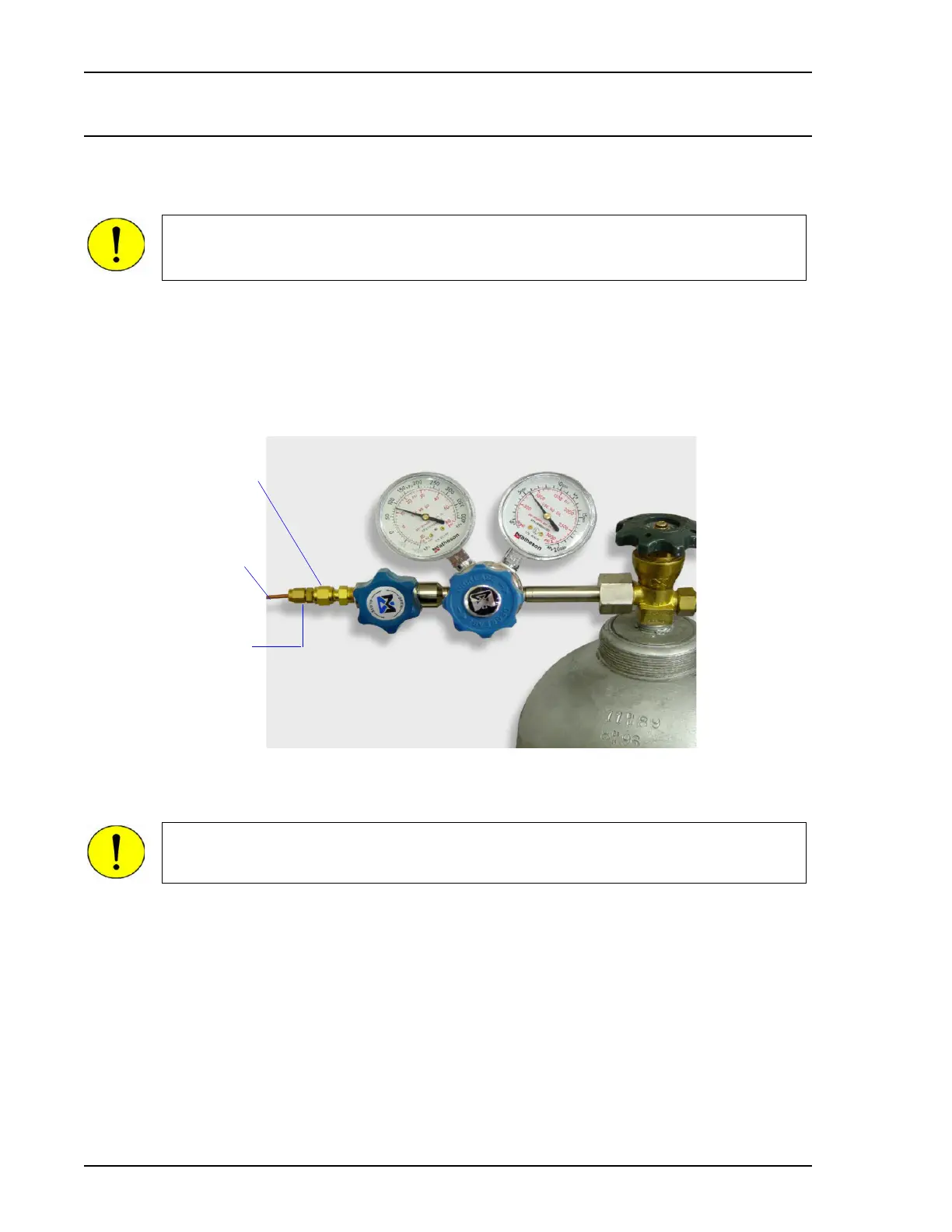

Bottle Shut-Off Valve
Reducer Fitting
Two-Stage Pressure
Reducing Regulator
Gas Bottle
Brass Reducer
Fitting
Copper Tubing
Regulator
Shut-Off Valve
Pressure
Control Knob
Do not overtighten the fittings. Doing so can collapse the brass ferrule and cause a
leak.
