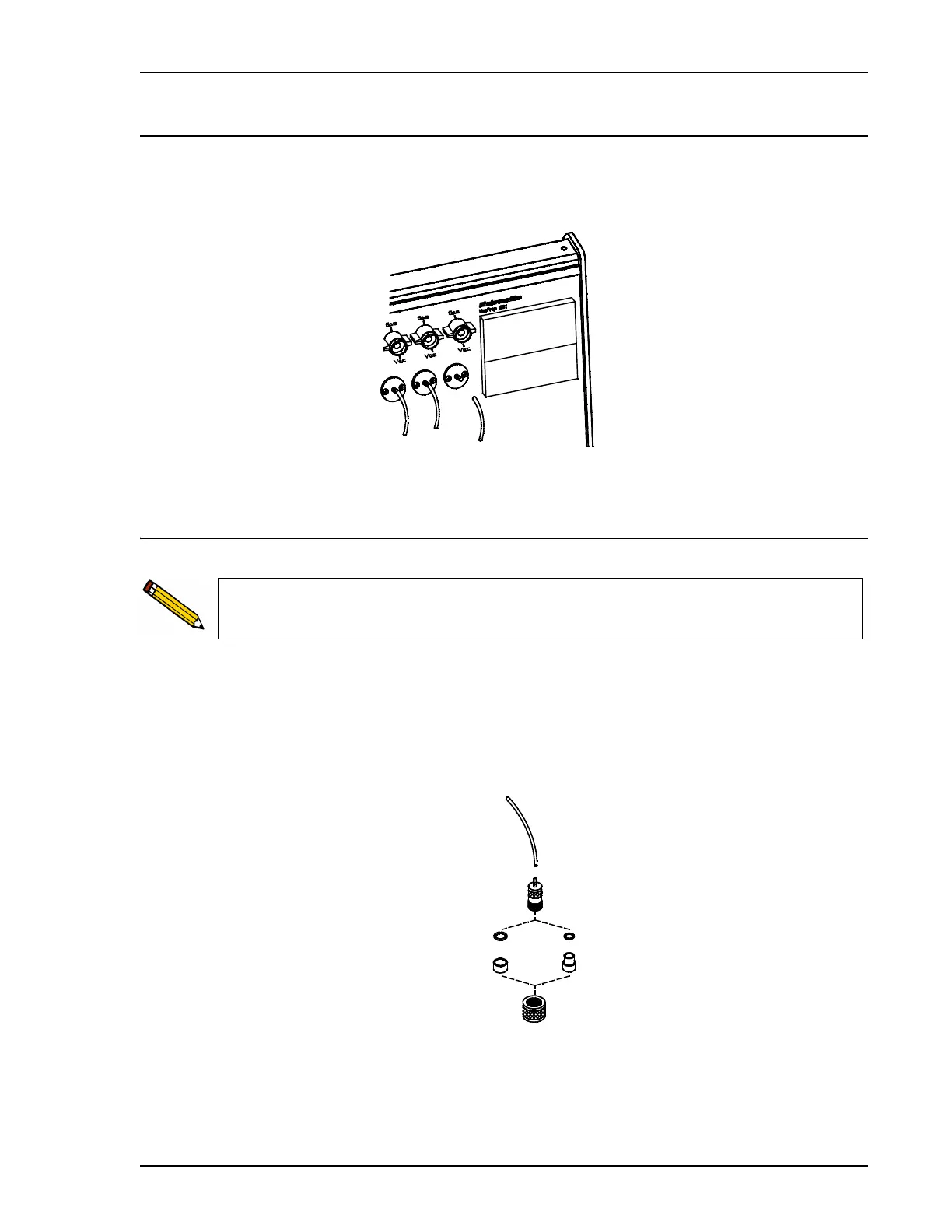

Attaching Flexible Tubing
Six pieces of flexible tubing are included in the accessories kit. Attach one piece of tubing to
the barbed vacuum/gas fitting at each degas station on the front panel.
Attaching Vacuum Fittings for Vacuum Preparation
Six vacuum fittings, with knurled retaining nuts, ferrules, and O-rings, are included in the
accessories kit. Attach a fitting to the flexible tubing at any degas station that will be used for
vacuum or vacuum-backfill sample preparation. Press the flexible tubing completely over the
barbed nipple on the end of the fitting. Loosely attach the knurled retaining nut, ferrule, and O-
ring.
If your sample fluidizes easily and you are using a Flow Control Valve, install it at this
time using the instructions provided with the valve.
1/2-in. or 12mm
O-ring and ferrule
(for 1/2-in. or
12 mm sample
tubes)
3/8-in. or 9mm
O-ring and ferrule
(for 3/8-in. or 9mm
sample tubes)
Fitting
Nut
