24

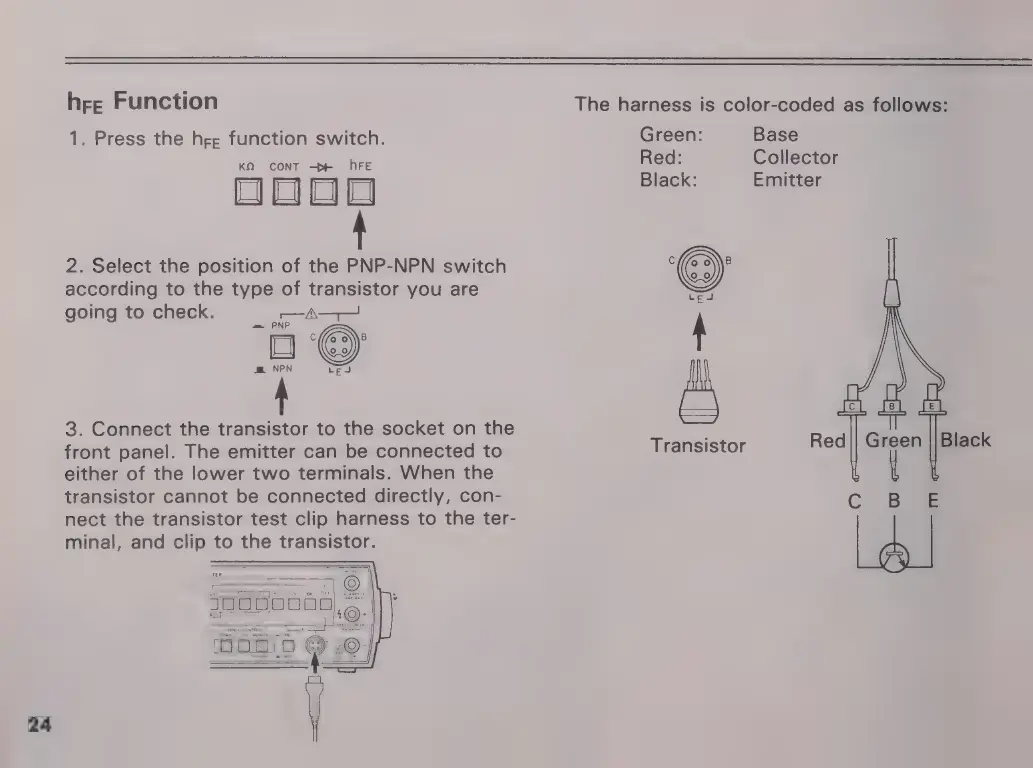

hee
Function
1.
Press
the
hpg
function
switch.
KN
CONT
>
hFE
pre
2.
Select
the
position
of
the
PNP-NPN
switch
according
to
the
type
of
transistor
you
are
going
to
check.
—A——
=
PNP
Cie
Ne
imi
am
NPN
ted
4
3.
Connect
the
transistor
to
the
socket
on
the
front
panel.
The
emitter
can
be
connected
to
either
of
the
lower
two
terminals.
When
the
transistor
cannot
be
connected
directly,
con-
nect
the
transistor
test
clip
harness
to
the
ter-
minal,
and
clip
to
the
transistor.
The
harness
is
color-coded
as
follows:
Base
Collector
Emitter
Green:
Red:
Black:
Transistor
Red
