Micronta 22-195A - MEMORY FUNCTION EXAMPLES AND OPERATION; Memory Storage and Polarity; Memory Function Examples

29

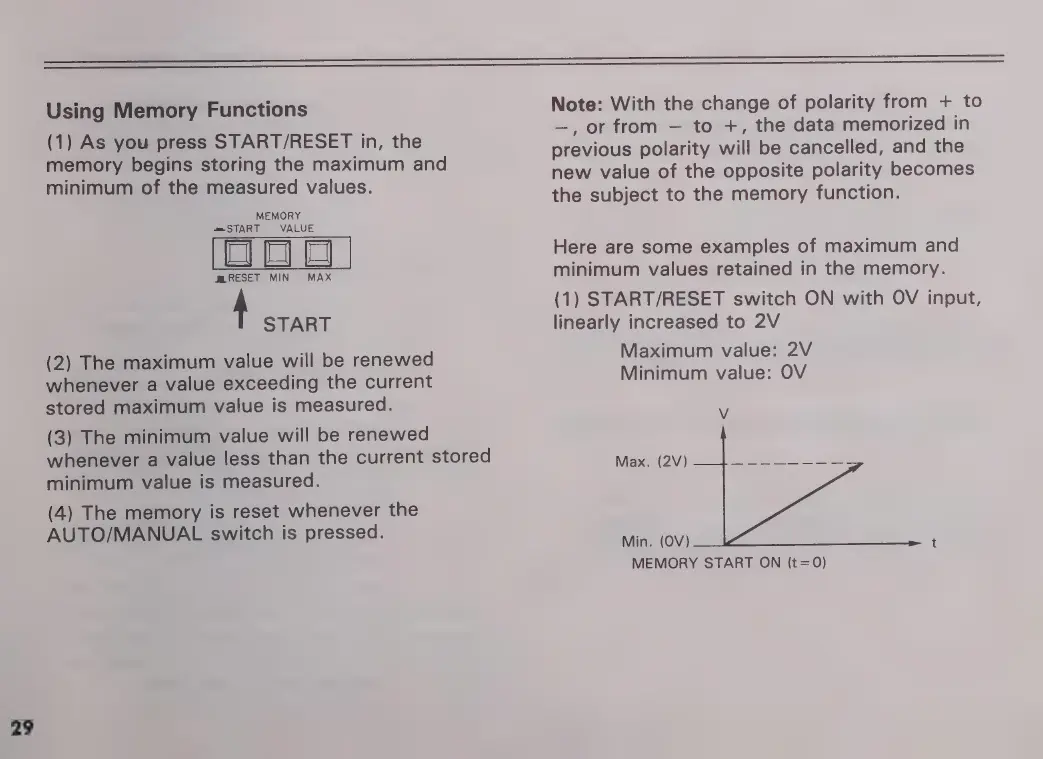

Using Memory Functions
(1) As you press START/RESET in, the
memory begins storing the maximum and
minimum of the measured values.
MEMORY
= START VALUE
RESET MIN MAX
$ START
(2)
The
maximum
value
will
be
renewed
whenever
a
value
exceeding
the
current
stored
maximum
value
is
measured.
(3)
The
minimum
value
will
be
renewed
whenever
a
value
less
than
the
current
stored
minimum
value
is
measured.
(4)
The
memory
is
reset
whenever
the
AUTO/MANUAL
switch
is
pressed.
Note:
With
the
change
of
polarity
from
+
to
—,
or
from
—
to
+,
the
data
memorized
in
previous
polarity
will
be
cancelled,
and
the
new
value
of
the
opposite
polarity
becomes
the
subject
to
the
memory
function.
Here are some examples of maximum and
minimum values retained in the memory.
(1) START/RESET switch ON with OV input,
linearly increased to 2V
Maximum value: 2V
Minimum value: OV
V
Max. (2V)
Min. (OV)
MEMORY START ON (t=0)
