Micronta 22-195A - MEMORY FUNCTION INPUT SCENARIOS; Non-linear Input Examples; Data Hold for Memory Retention

30

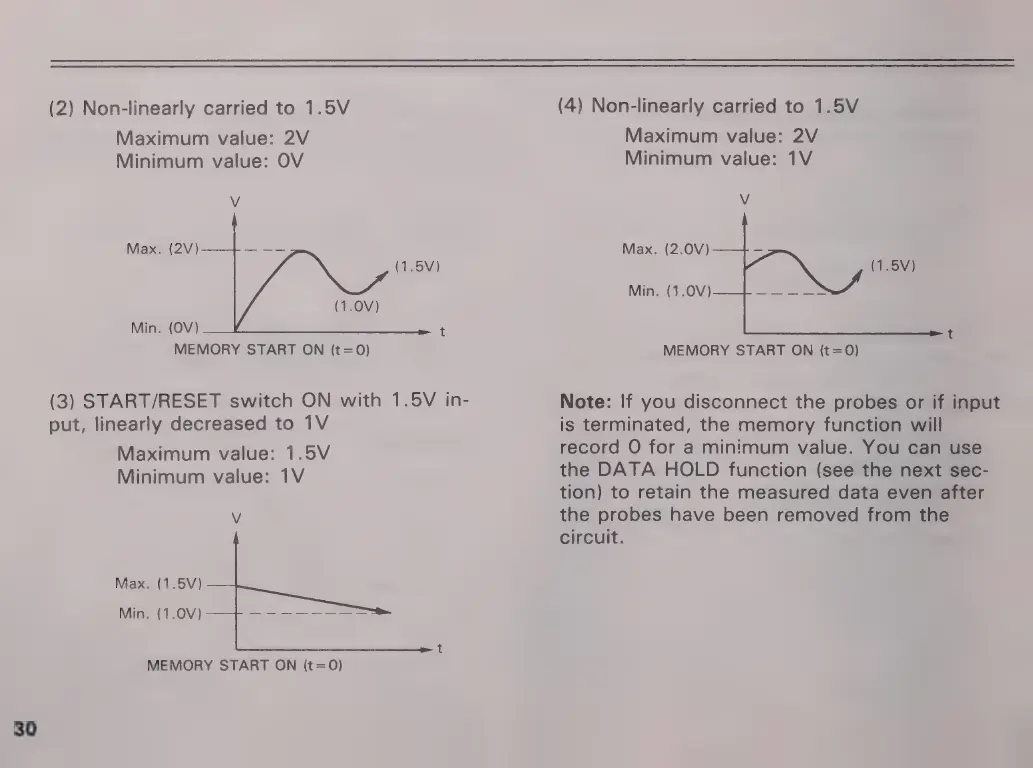

(2) Non-linearly carried to 1.5V
Maximum value: 2V
Minimum value: OV
Min. (OV)
MEMORY START ON (t=O)
(3)
START/RESET
switch
ON
with
1.5V
in-
put,
linearly
decreased
to
1V
Maximum value: 1.5V
Minimum value: 1V
V
Max. (1.5V)
Min. (1.0V)
MEMORY START ON (t=0)
(4) Non-linearly carried to 1.5V
Maximum value: 2V
Minimum value: 1V
V
Max. (2.0V)
Min. (1.0V)
MEMORY START ON (t=0)
Note: If you disconnect the probes or if input
is terminated, the memory function will
record O for a minimum value. You can use
the DATA HOLD function (see the next sec-
tion) to retain the measured data even after
the probes have been removed from the
circuit.
