Micronta 22-195A - MEMORY FUNCTION DATA DISPLAY; Clearing Memory and Display; Recalling Max;Min Values

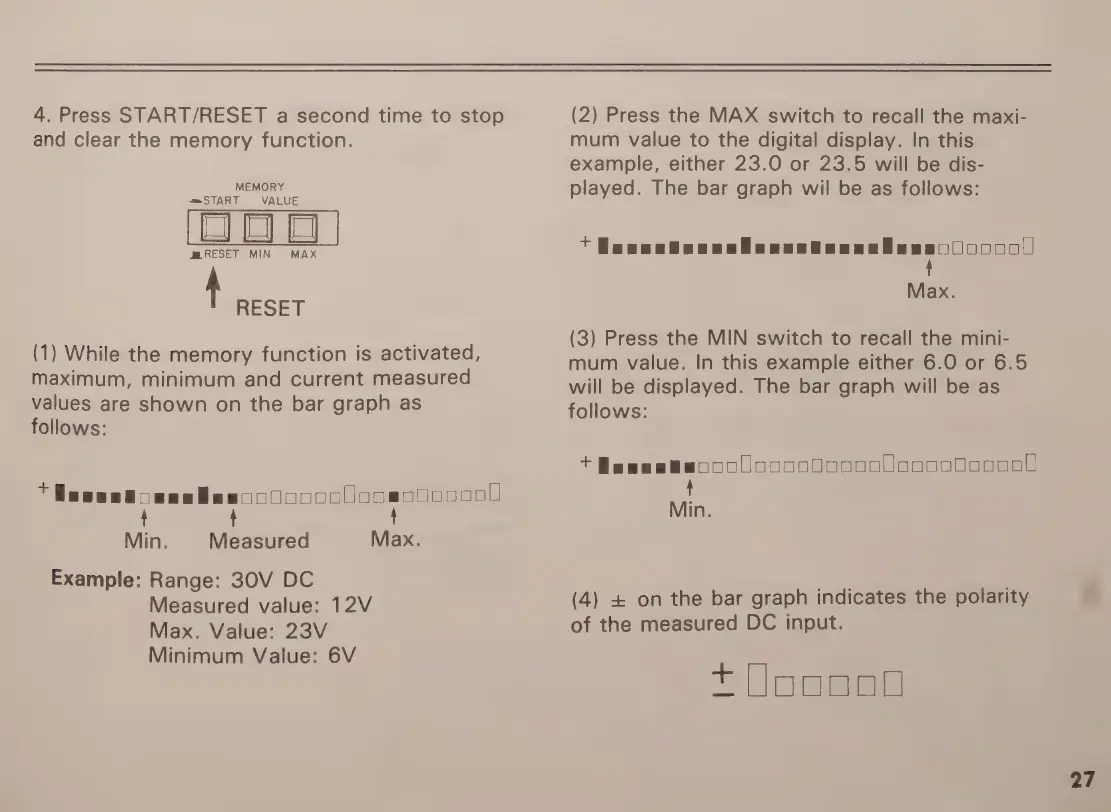

4. Press START/RESET a second time to stop
and clear the memory function.
MEMORY
= START VALUE
J&RESET MIN MAX
U RESET
(1) While the memory function is activated,
maximum, minimum and current measured
values are shown on the bar graph as
follows:
m | + FTTTTBITTIET Isisiuisiulals
4
4
Min. Measured Max.
Example: Range: 30V DC
Measured value: 12V
Max. Value: 23V
Minimum Value: 6V
(2) Press the MAX switch to recall the maxi-
mum value to the digital display. In this
example, either 23.0 or 23.5 will be dis-
played. The bar graph wil be as follows:
+ FTTTITETTETLI TTILTLI eee ooo
Max.
(3) Press the MIN switch to recall the mini-
mum value. In this example either 6.0 or 6.5
will be displayed. The bar graph will be as
follows:
+
Beem
BecooUcoso0000coL
0000000
Min.
(4)
+
on
the
bar
graph
indicates
the
polarity
of the measured DC input.
t Lim
27
