Micronta 22-195A - CONTROL SWITCHES AND TERMINALS; Transistor Measurement Terminals; Meter Control Switches

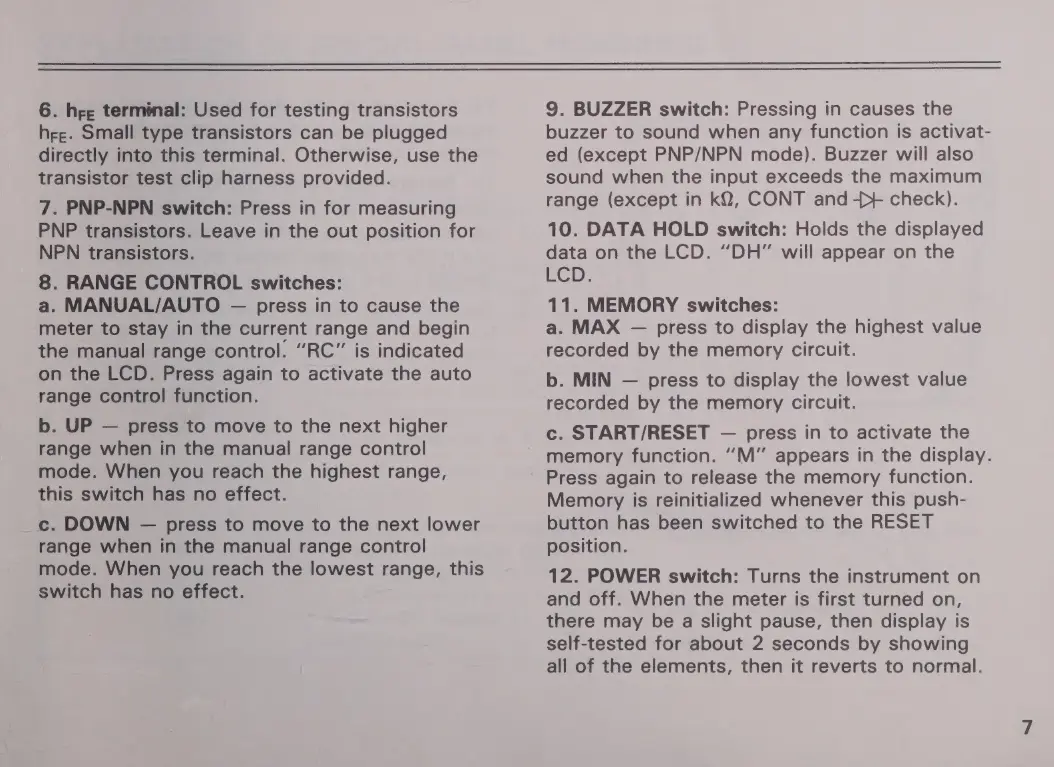

6. hee terminal: Used for testing transistors
hee. Small type transistors can be plugged
directly into this terminal. Otherwise, use the
transistor test clip harness provided.
7. PNP-NPN switch: Press in for measuring
PNP transistors. Leave in the out position for
NPN transistors.
8. RANGE CONTROL switches:
a. MANUAL/AUTO — press in to cause the
meter to stay in the current range and begin
the manual range control. “RC” is indicated
on the LCD. Press again to activate the auto
range control function.
b. UP — press to move to the next higher
range when in the manual range control
mode. When you reach the highest range,
this switch has no effect.
c. DOWN — press to move to the next lower
range when in the manual range control
mode. When you reach the lowest range, this
switch has no effect.
9. BUZZER switch: Pressing in causes the
buzzer to sound when any function is activat-
ed (except PNP/NPN mode). Buzzer will also
sound when the input exceeds the maximum
range (except in kQ, CONT and Jœ check).
10. DATA HOLD switch: Holds the displayed
data on the LCD. "DH" will appear on the
LCD.
11. MEMORY switches:
a. MAX — press to display the highest value
recorded by the memory circuit.
b. MIN — press to display the lowest value
recorded by the memory circuit.
c. START/RESET — press in to activate the
memory function. "M" appears in the display.
Press again to release the memory function.
Memory is reinitialized whenever this push-
button has been switched to the RESET
position.
12. POWER switch: Turns the instrument on
and off. When the meter is first turned on,
there may be a slight pause, then display is
self-tested for about 2 seconds by showing
all of the elements, then it reverts to normal.
