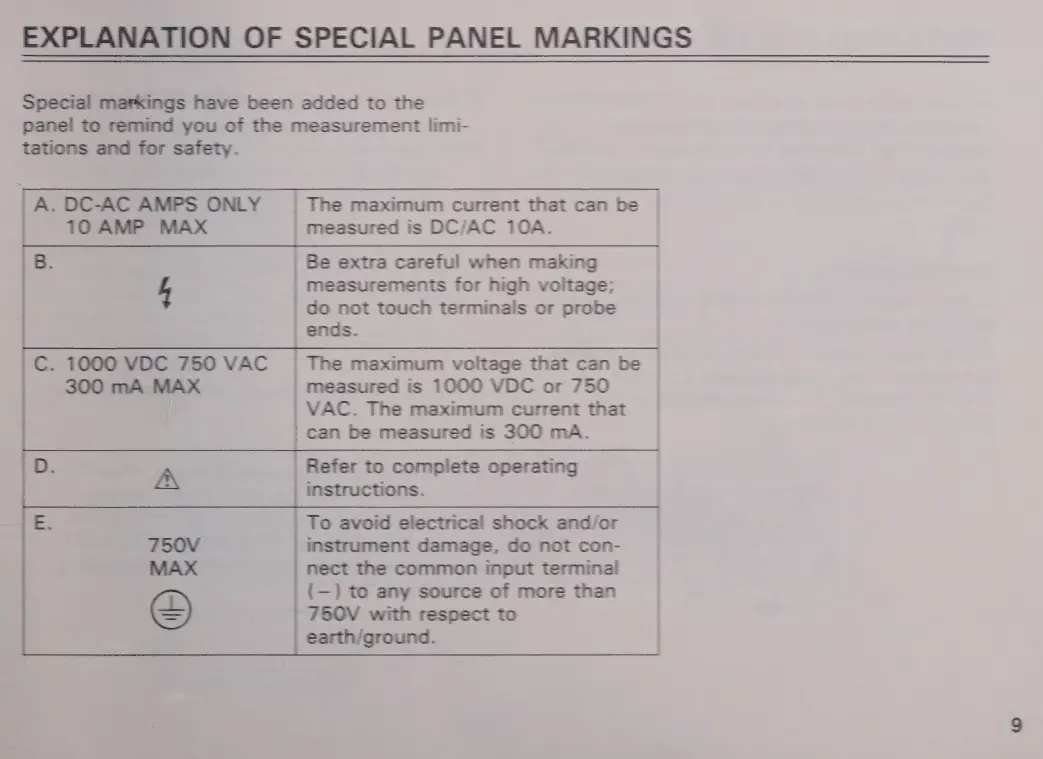

EXPLANATION OF SPECIAL PANEL MARKINGS
Special markings have been added to the
panel to remind you of the measurement limi-
tations and for safety.
A. DC-AC AMPS ONLY The maximum current that can be
10 AMP MAX measured is DC/AC 104A.
Be extra careful when making
4 measurements for high voltage:
| do not touch terminals or probe
ends.
C. 1000 VDC 750 VAC | The maximum voltage that can be
300 mA MAX | measured is 1000 VDC or 750
VAC. The maximum current that
| can be measured is 300 mA.
Refer to complete operating
| instructions.
To avoid electrical shock and/or
750V instrument damage, do not con-
MAX nect the common input terminal
(—) to any source of more than
750V with respect to
; earth/ground.
