Power management MLR003R – 12

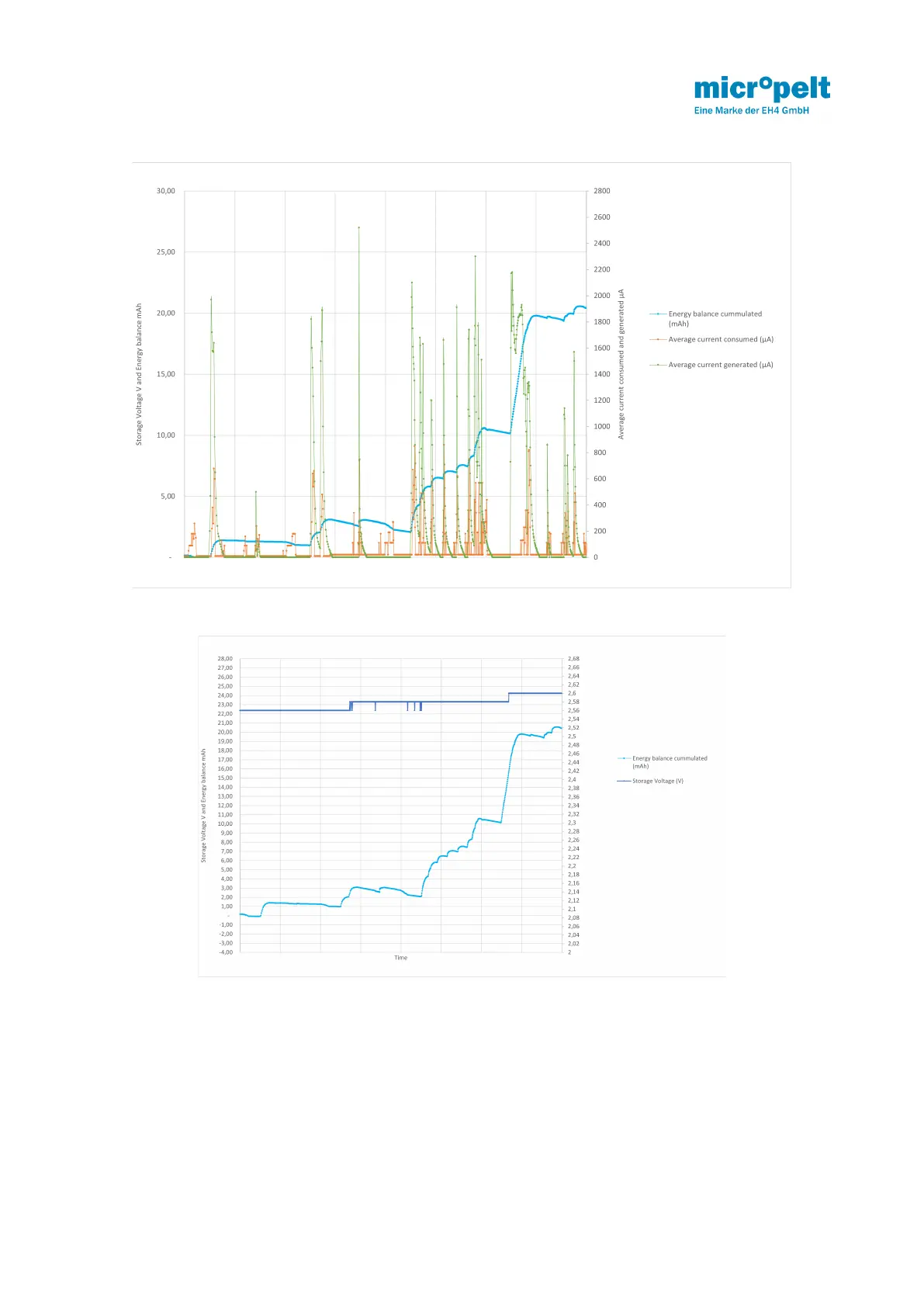

1 Exemplary values for ACC, ACG and computed energy balance.
2 Exemplary values for STV and computed energy balance.
6.1.2 Energy Storage
Using its status bit "Energy Storage", the unit indicates that its long-term operation consumed more
energy than it generated. The remaining charge level at this point is approximately 25%, which is why the
device continues with full functionality while signaling a negative energy balance to the user. It is
strongly recommended to regularly check the ES bit in order to recognize a discharge of the storage and
