Mechanical Interface to circulation valve body MLR003R
–
35
11

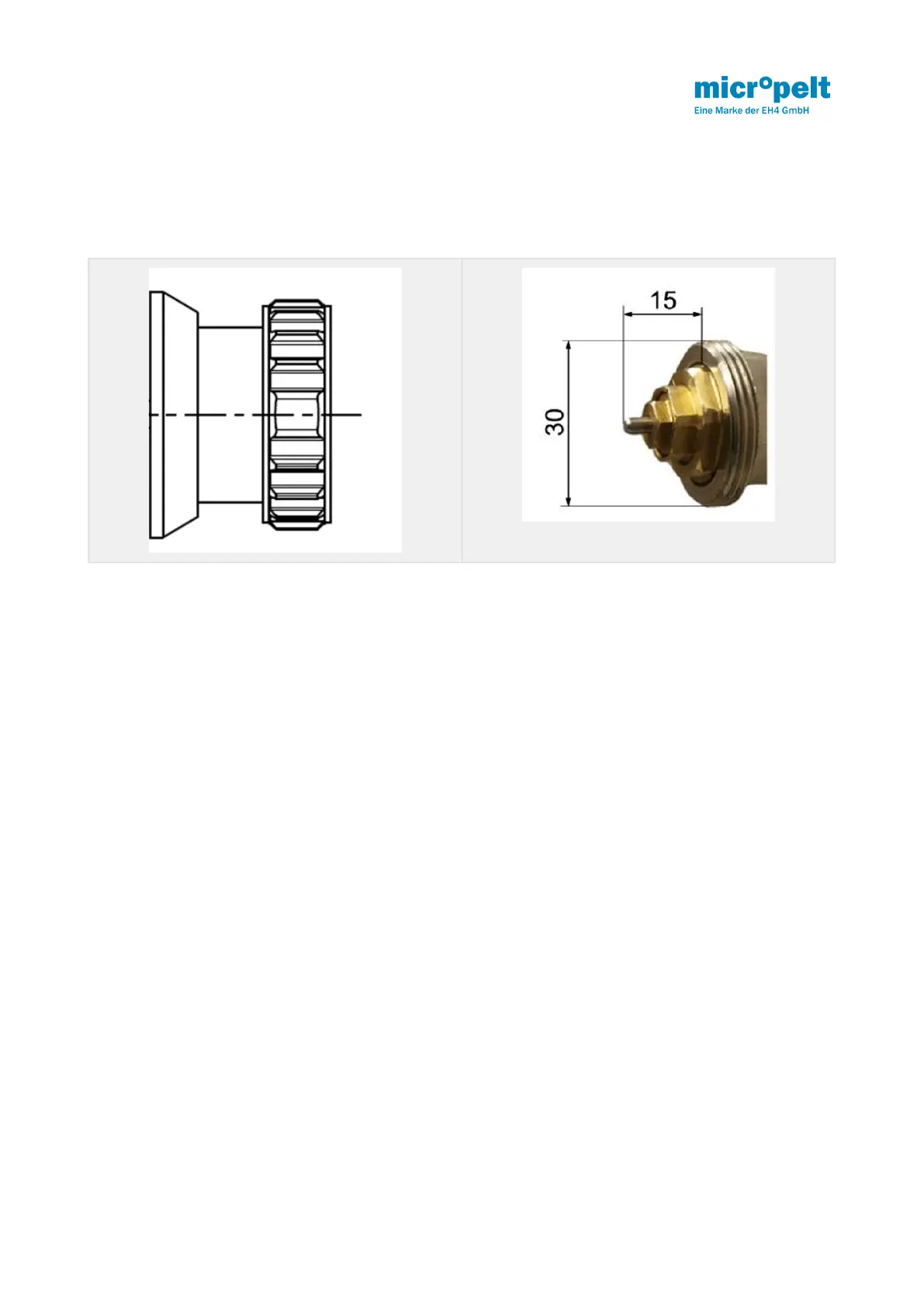

Mechanical Interface to circulation valve body MLR003R
Mechanical Interface to circulation valve body
The MLR003R series of products is designed to mount onto an M30 x 1.5mm valve.
Several other valve types are served by metallic adapter pieces.
34
36
