g. Power off device – Use device OS to power down device.
h. Remove C-cover.
i. Remove rSSD.
6. FPC RF Shield Installation – Install 2 new shield lids above the 4 AB-cover FPC connectors by orienting them
along the outline of the shield fences.
IMPORTANT: Be sure to install the correct shield type onto the corresponding shield fence. The left-
hand shield has 2 rectangular embosses in the shape of connector heads and the right-hand shield has 3
rectangular embosses.
Prior to shield installation, visually inspect each shield to ensure that shield ngers are not bent such that
they impede the installation process.
Push the shields vertically downwards onto the fences and snap into place. Ensure the shields are evenly
pressed along the entire perimeter of each fence and that the front shield prongs are pressed rmly
against the shield fence.

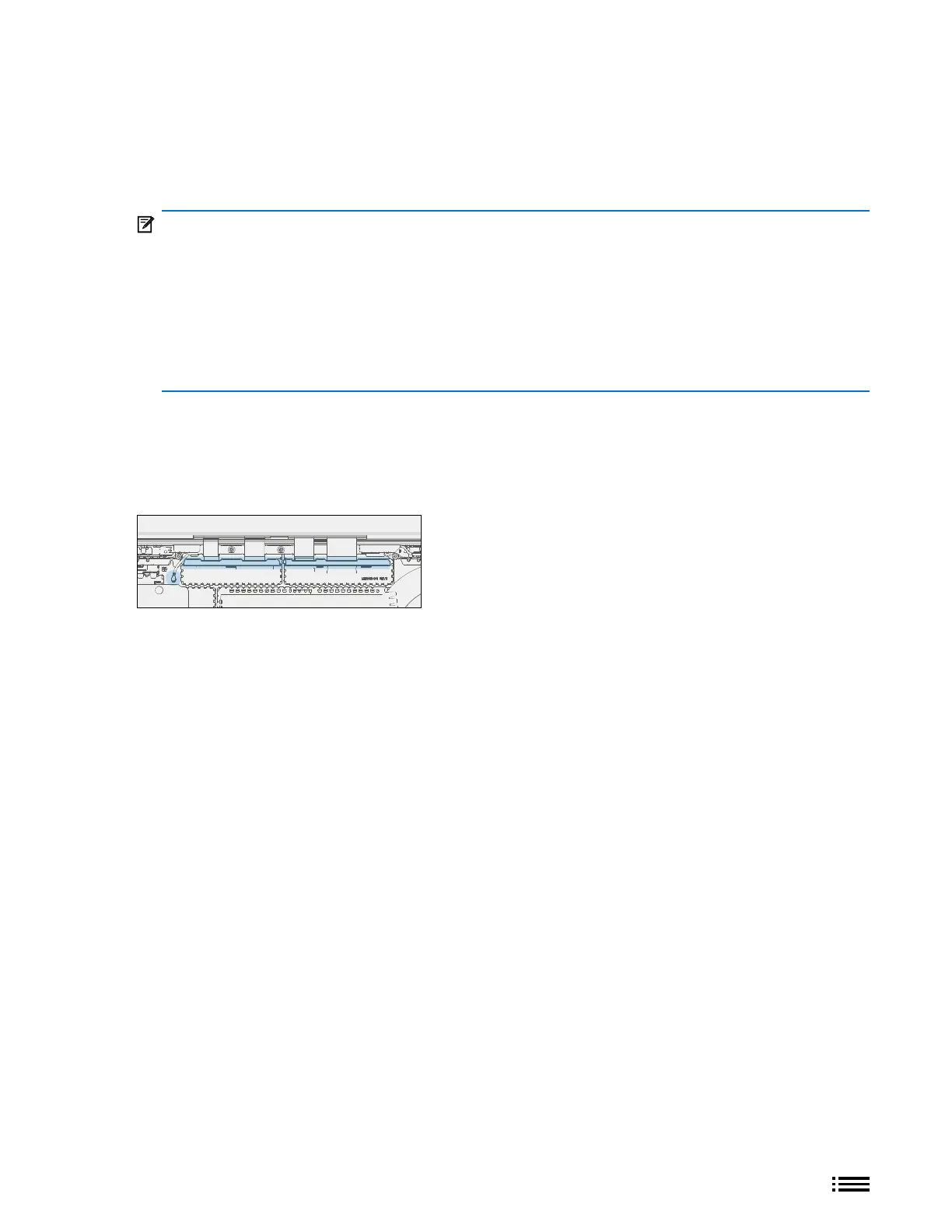

7. Connect WiFi Antenna – Reconnect the left WiFi antenna cable (see illustration below).
8. RF Bafe Installation – Install 2 new RF bafes on top of the shield by peeling off the adhesive protector
sheet and snapping them into place near the back of the shields. Firmly press your nger along the top of the
RF Bafe wall to adhere adhesive to shield.
