Microtek ScanMaker 9800XL Plus User Manual

ScanMaker 9800XL Plus User Guide 11

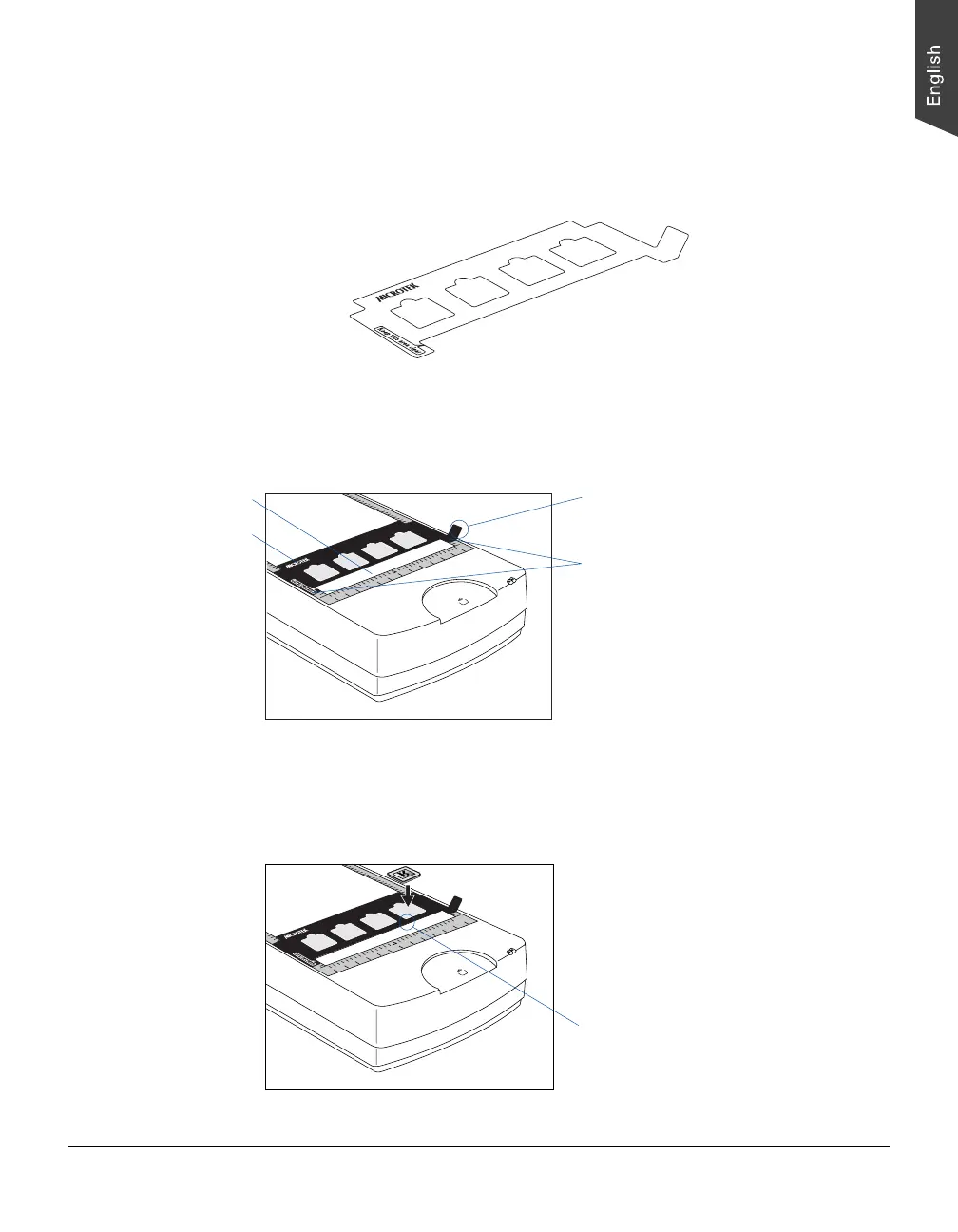

A. Using the 35mm Slide Template
To scan 35mm slides, use the 35mm Slide Template, which can hold up to 4 mounted
35mm slides at a time.
1. Place the 35mm Slide Template on the scanner glass surface. Make sure to orient
the template with the “Microtek” logo facing up.
2. Place the 35mm slides to be scanned inside the individual frames of the 35mm
Slide Template. The shiny base of the 35mm slide should be facing down, and
the emulsion side of the slide should be facing up.
2
1
0
3
4
5
6
6
5
4
3
2
1
The Grabber is used to remove the
template out of the scanner glass
surface.
Important: Align the template's
front corners firmly against the top
corners (left and right) of the
U-shaped ruler located at the front
of the scanner. During placement of
the template, make sure that the
calibration strip on the scanner
glass surface is kept clear and free
of obstruction at all times.
Calibration strip
Microtek logo
2
1
0
3
4
5
6
6
5
4
3
2
1
Align the 35mm slide against the
bottom-left corner of the frame
