6 ScanMaker 9800XL Plus User Guide

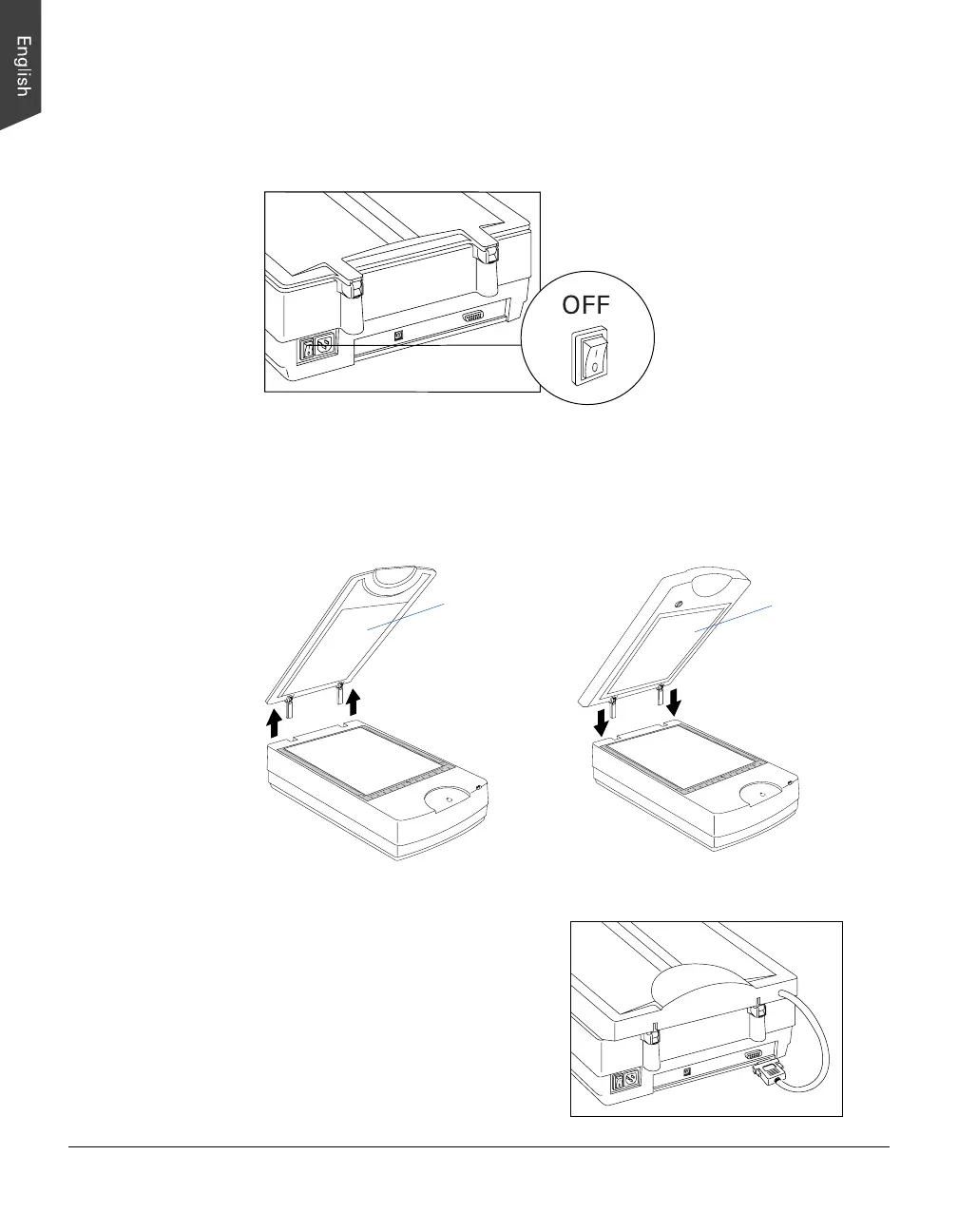

B. Installing the TMA 1600-III
1. Check to make sure that the scanner power is switched off.
2. Remove the scanner lid, then attach the TMA 1600-III by sliding the posts at the
rear of the TMA 1600-III into the holes.
1
0
3
4
5
6
6
5
4
3
2
1
2
1
0
3
4
5
3
2
1
1
0
3
4
5
6
6
5
4
3
2
1
TMA 1600-III
Scanner lid
3. Plug the connector of the TMA 1600-
III into the scanner’s 15-pin
accessory port.
