Midas VERONA User Manual

Channel Equalisation
Each mono input channel of the Verona has a four (4) band sweep EQ
allowing tonal control over the input signal.
- The gain of the treble equaliser is continuously variable from -15dB to +15dB with
a centre detent at 0dB.
- The centre frequency of the treble equaliser is continuously variable from
2kHz to 20kHz.
- The gain of the hi-mid equaliser is continuously variable from -15dB to +15dB
with a centre detent at 0dB.
- The centre frequency of the hi-mid equaliser is continuously variable from
400Hz to 8kHz.
- The centre frequency of the lo-mid equaliser is continuously variable from
100Hz to 2kHz.
- The gain of the lo-mid equaliser is continuously variable from -15dB to +15dB
with a centre detent at 0dB.
- The centre frequency of the bass equaliser is continuously variable from 20Hz
to 200Hz.
- The gain of the bass equaliser is continuously variable from -15dB to +15dB with a
centre detent at 0dB.
- The Equaliser can be enabled by depressing the EQ On switch. Otherwise changes on the
Equaliser controls have no effect. This can be used to compare the sound with and without EQ
during sound check.
- If desired, the channel signal can be sent to the auxiliary outputs without
equalisation. Depressing the EQ Off (Aux Pre) switch causes pre-fader auxiliary sends 1-6 to be
sourced before the channel equaliser (Pre-EQ) as the factory standard. However aux sends 7-8 can be linked to
the pre EQ off switch, as well as 1-6, via an internal jumper (refer to the service manual or contact your
authorised Midas service agent). Note: Post fader sends are always Post EQ.

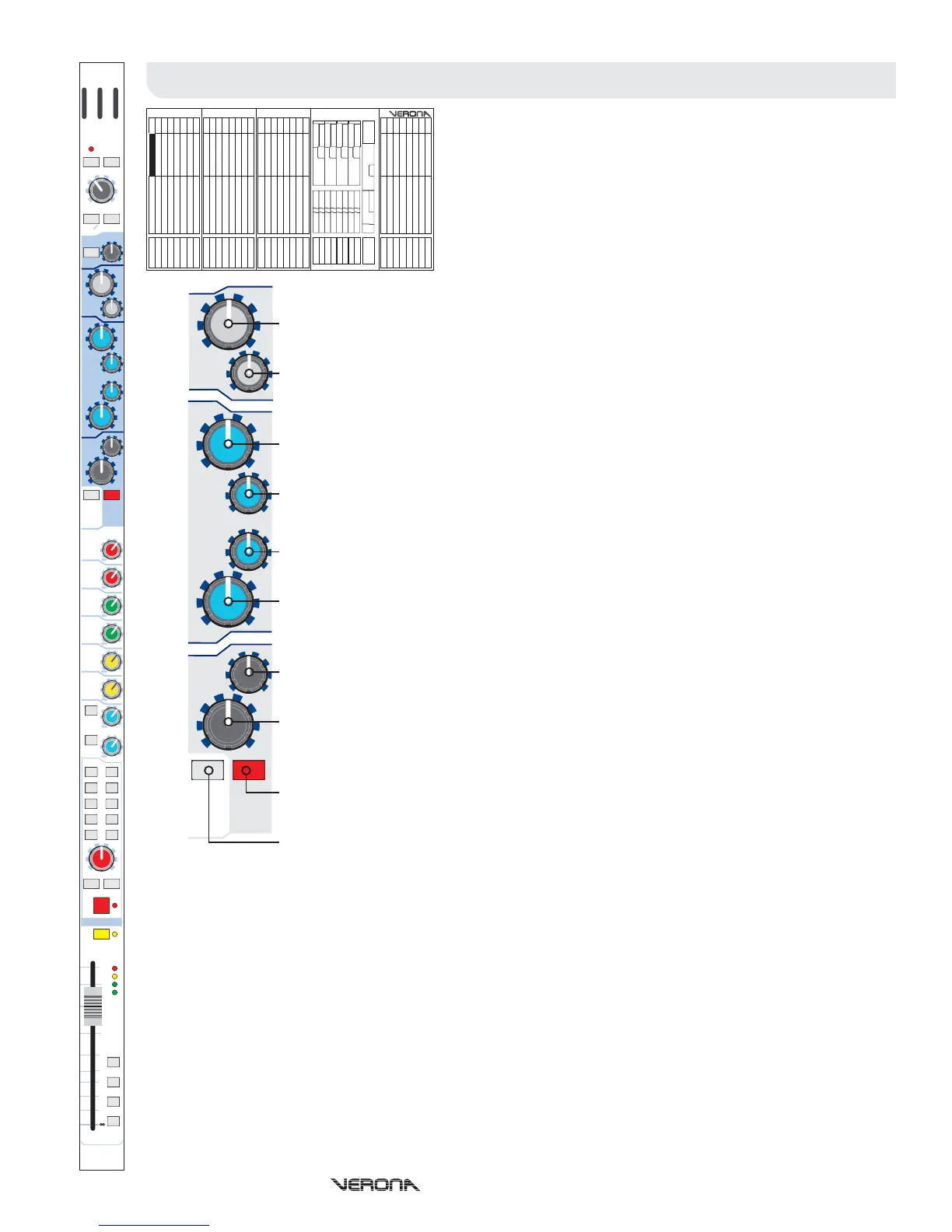

Treble (Gain)
