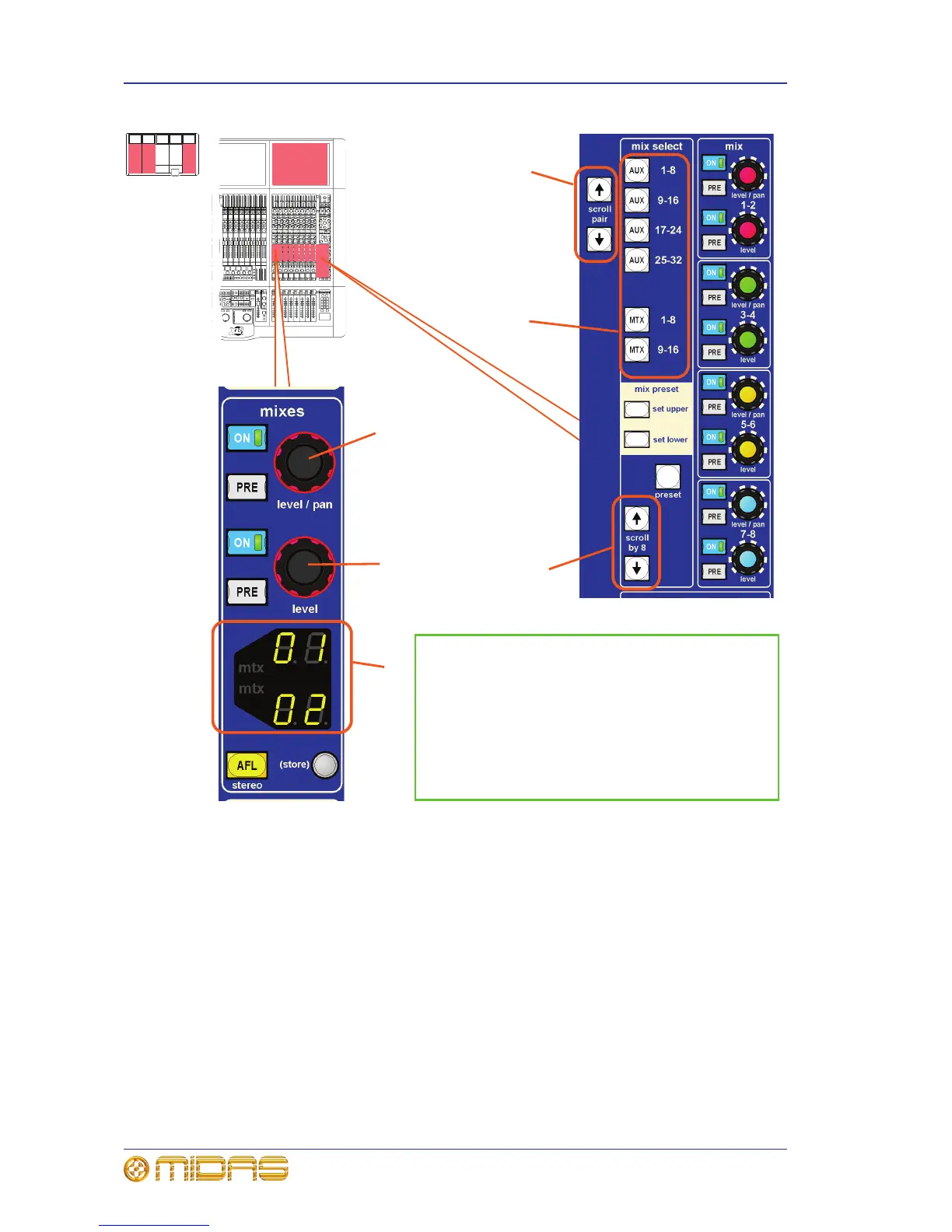

Key:
1 Scroll buttons
2 Aux and matrix mix select buttons
3 Control knob provides navigational information,
whereby its backlight colour changes to suit the
currently selected pair, matching those in the mix
section (shown above)
4 LCD display shows the currently selected mix pair (aux
or matrix); mtx legends illuminate when mix pair are
matrices and extinguish when they are auxes
1
2
1
4
3
3
