Manual Number 9018233 Revision C, February 21, 2022 15

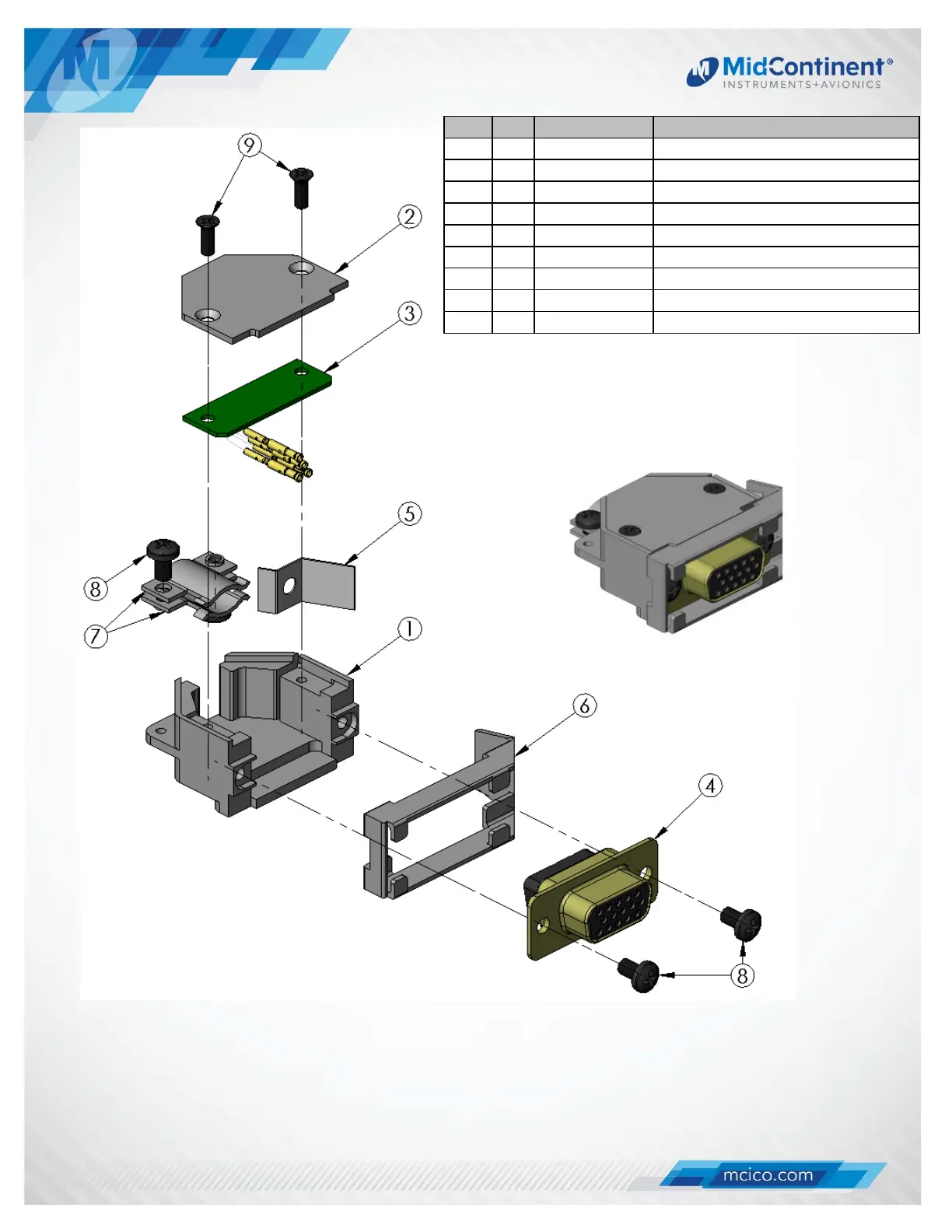

FIGURE 3.2
CONFIGURATION MODULE ASSEMBLY
Item Qty Part Number Description
1 1 9017218 Backshell, Size 9
2 1 9017274 Cover, Backshell
3 1 9017184-1 PCB Assy, Config Module
4 1 9016479 Kit, DSub, 15pin HD
5 1 part of 9016479 DSub Backshell Spring Clip
6 1 part of 9016479 DSub Slide Lock, Size 9
7 2 part of 9016479 DSub Backshell Cable Clamp
8 4 90-406-00011 Screw 4-40X3/16 Pan Phil Blk Patch
9 2 90-208-10011 Screw 2-56X1/4 Flat Phil Blk Patch
shield termination
