CCM-180A/WS Service Manual
3.1.3 This product adopts a concealed installation mode. The communication cable and power cord are fixed to the
positions shown in Figure 4 using cable ties.

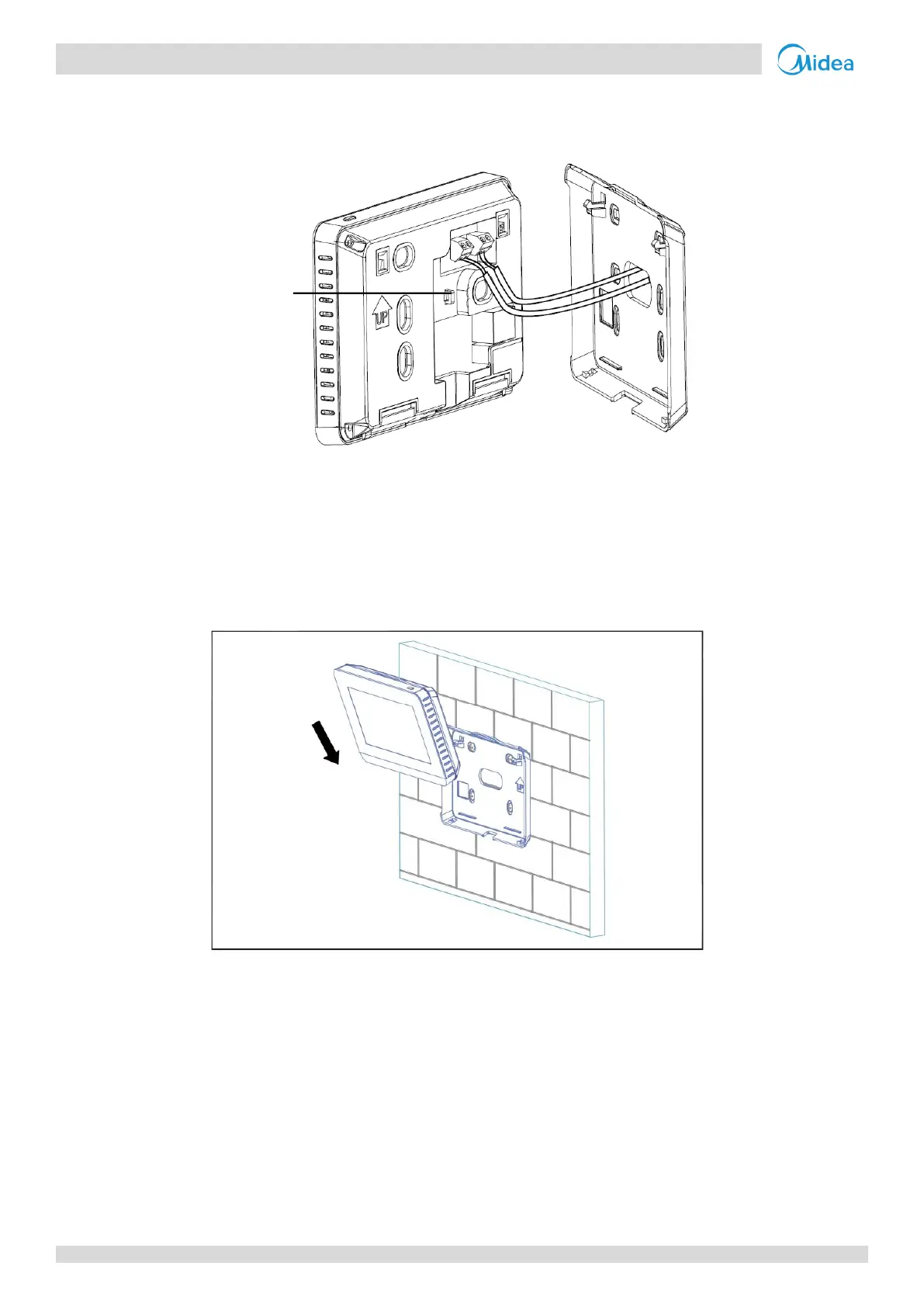

Figure 4 Centralized controller wiring diagram and cable tie fixing hole
3.1.4 Insert the centralized controller into two buckles slantwise at the bottom of back cover, as shown in Figure 5.
Figure 5 Insert controller into back cover
Fixing line position
of the cable tie (in
the accessory bag )
