MCAC-RTSM-2009-09 Midea Heat Pump Water Heater Technical Manual
22
9. Installation place and service space
9.1 Outdoor unit service space
a) Selecting an installation location
A place which provides a specified space around the outdoor unit.
A place were the operation noise and discharged air are not given(affected) to your neighbors.
A place that is not exposed to a strong wind.
A place that does not block a passage.
When the outdoor unit is installed in an elevated position, be sure to secure its feet.
There must be sufficient space for carrying in the unit.
A place where the drain water does not make any problem

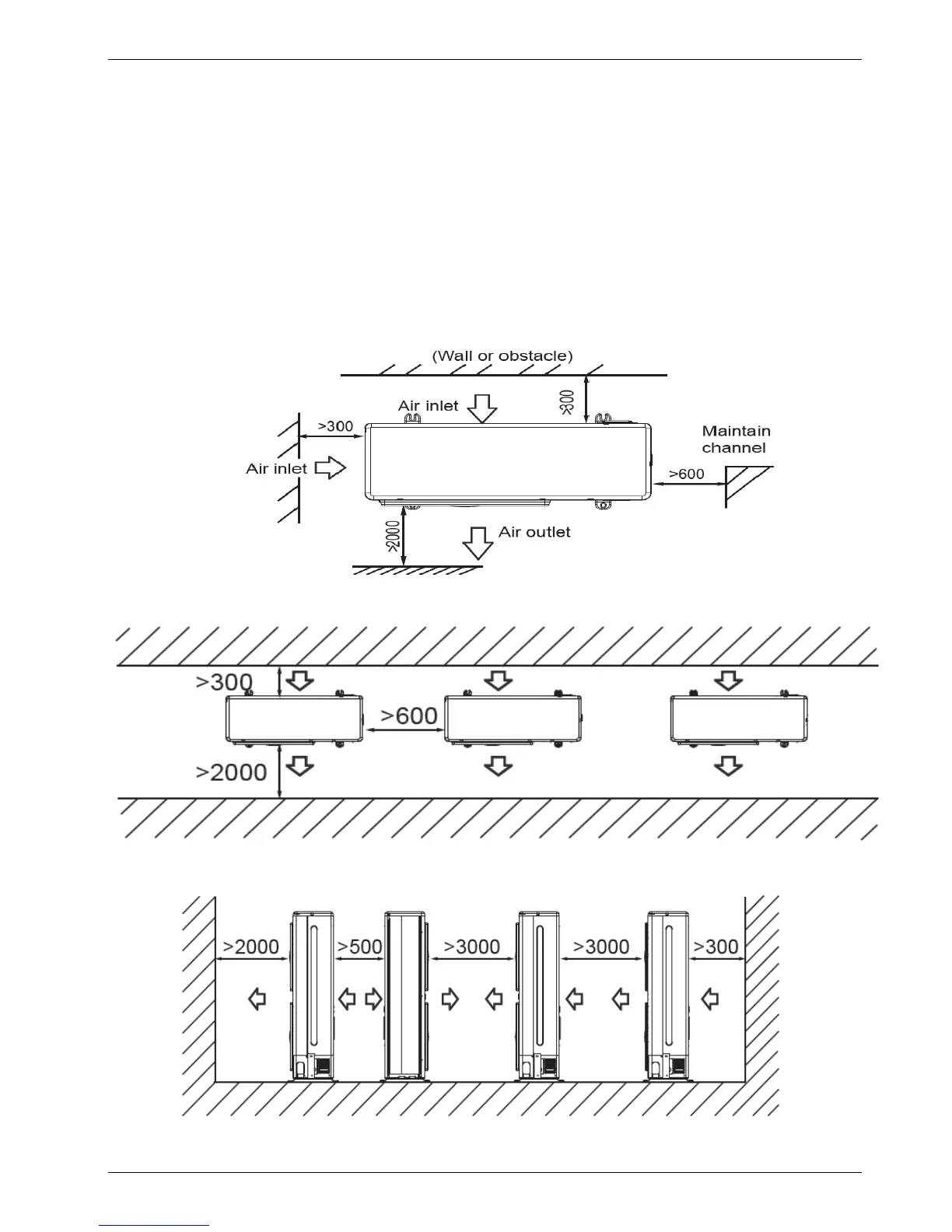

b) Single unit service place
c) Parallel connect the two units or above
d) Parallel connect the front with rear sides
