23

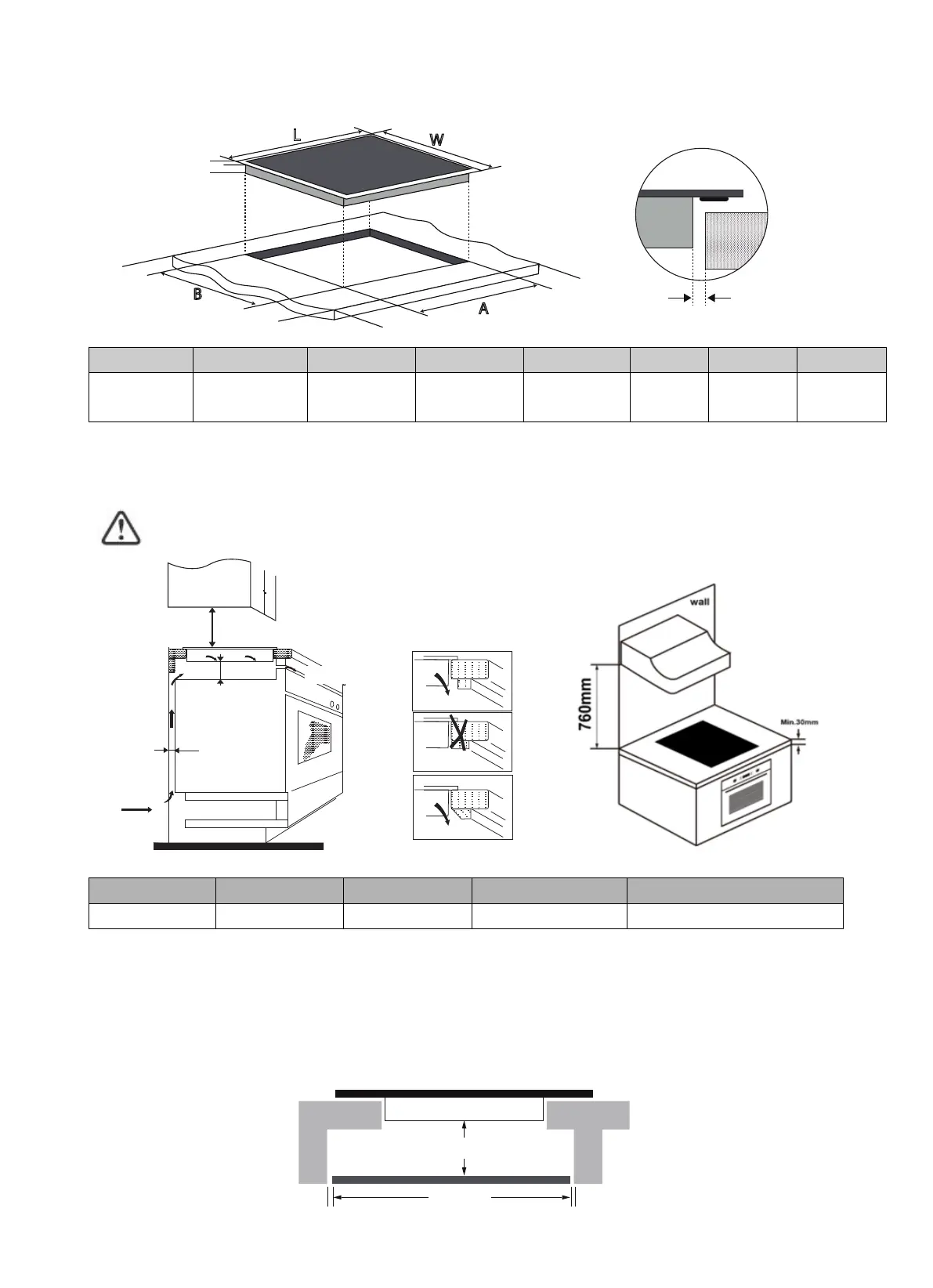

L(mm) W(mm) H(mm) D(mm) A(mm) B(mm) X(mm) F(mm)
590 520 60 56 560+4
+1
490+4
+1
50 min. 3 min.
Under any circumstances, make sure the Induction cooker hob is well ventilated and the air inlet and
outlet are not blocked. Ensure the induction cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at
least 760 mm.
WARNING: Ensuring
Adequate Ventilation
Make sure the induction cooker hob is well ventilated and that air inlet and outlet are not
blocked.
In
order to avoid accidental touch with the overheating bottom of the hob, or getting unexpectable
electric shock during working, it is necessary to put a wooden insert, fixed by screws, at a minimum
distance of 50mm from the bottom of the hob. Follow the requirements below.
A(mm) B(mm) C(mm) D E
760 50 min. 20 min. Air intake Air exit 5mm
3mm Min.
F
H
D
L
W
x
x
x
x
B
A
SEAL
Min. 5 cm
Max. 5 mm Max. 5 mm
A
B
C
E
D
