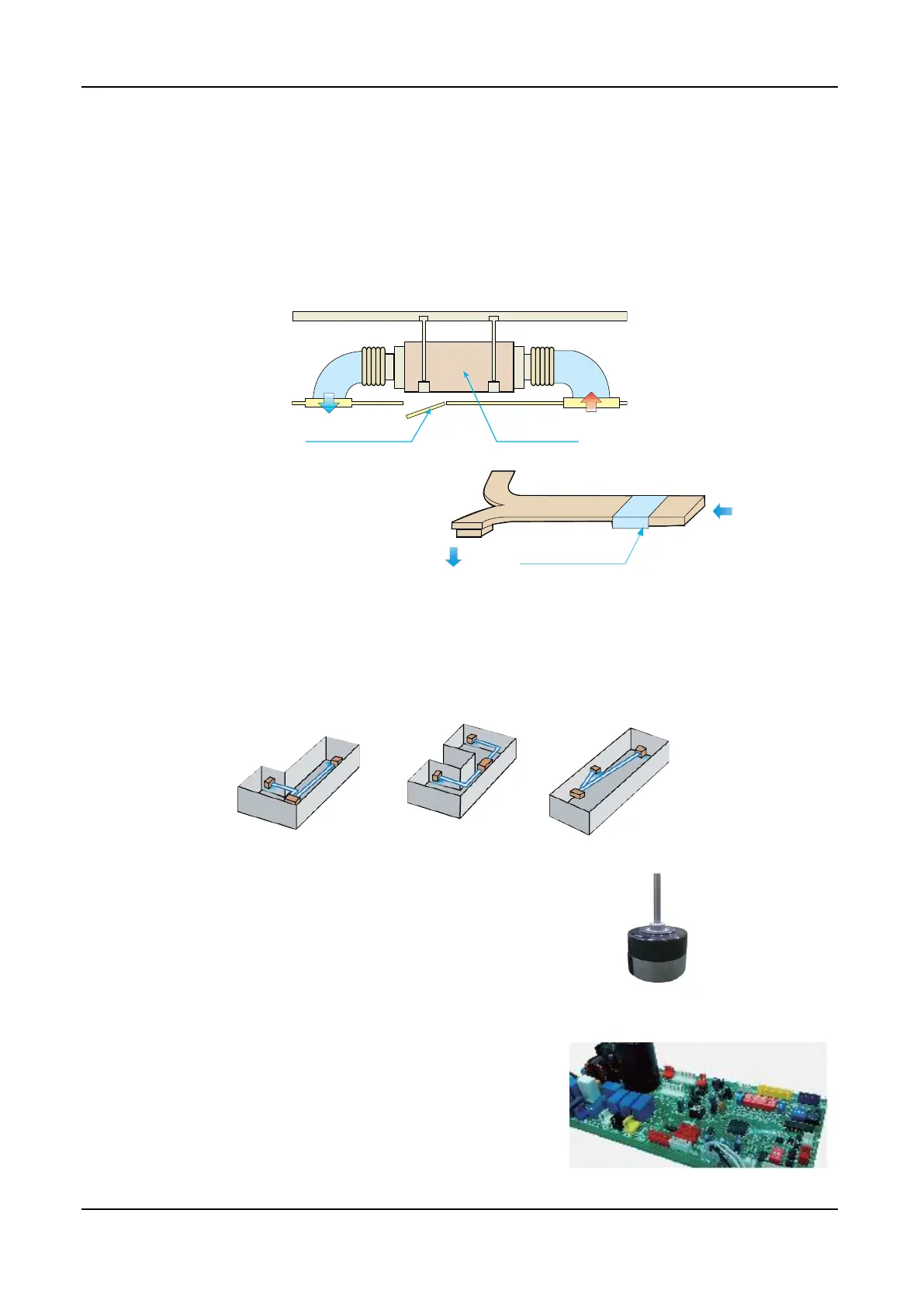

MCAC-UTSM-201503 R410A Full DC Inverter Split Duct Type Technical Manual
12
INDOOR UNIT
Air supply
Air return
1. Features
1.1 Compace design & Convenient installation
Convenient installation, hidden in the ceiling, unit installation is not hindered by the location of
lighting fixtures or room structure.
Air inlet and outlet flanges are standard and easy for duct connection.
1.2 External static pressure
Three speed fan motor.
External static pressure is up to 150Pa.
The indoor air flow is up to 4800m3/h.
1.3 Flexible duct design for different room styles
Multi diffusers from one indoor unit supply airflow to multi rooms at the same time. The unit is suitable for
various applications, such as restaurants, connect halls and hotels。
1.4 High efficient DC fan motor
High energy efficient thanks to the DC fan motor.
Contrast with the AC fan motor, the power consumption of DC fan
motor can reduce up to 50%.
1.5 Optimized electronic control board
Equipped with remote ON/OFF and remote Alarm connection
terminal.
Compatible with central controller CCM03/CCM30.
Equipped with a fresh air fan motor joint control terminal.
inspection port
indoor unit
