R410A Full DC Inverter Split Duct Type Technical Manual MCAC-UTSM-201503
29
CAUTION
Rubbish is easy to accumulate at drain stream trap. Make sure to install a plug or other things which is
easy to clean.
2. Test draining
Open the clapboard of indoor unit, pour the water in to see whether it drain smoothly and whether there is
water leakage.
3. Heat insulation
After confirming that drainage is smoothly and there is no leakage, wrap the drainpipe with insulation
material, or there will be condensed water.
3. Installation of Outdoor Units

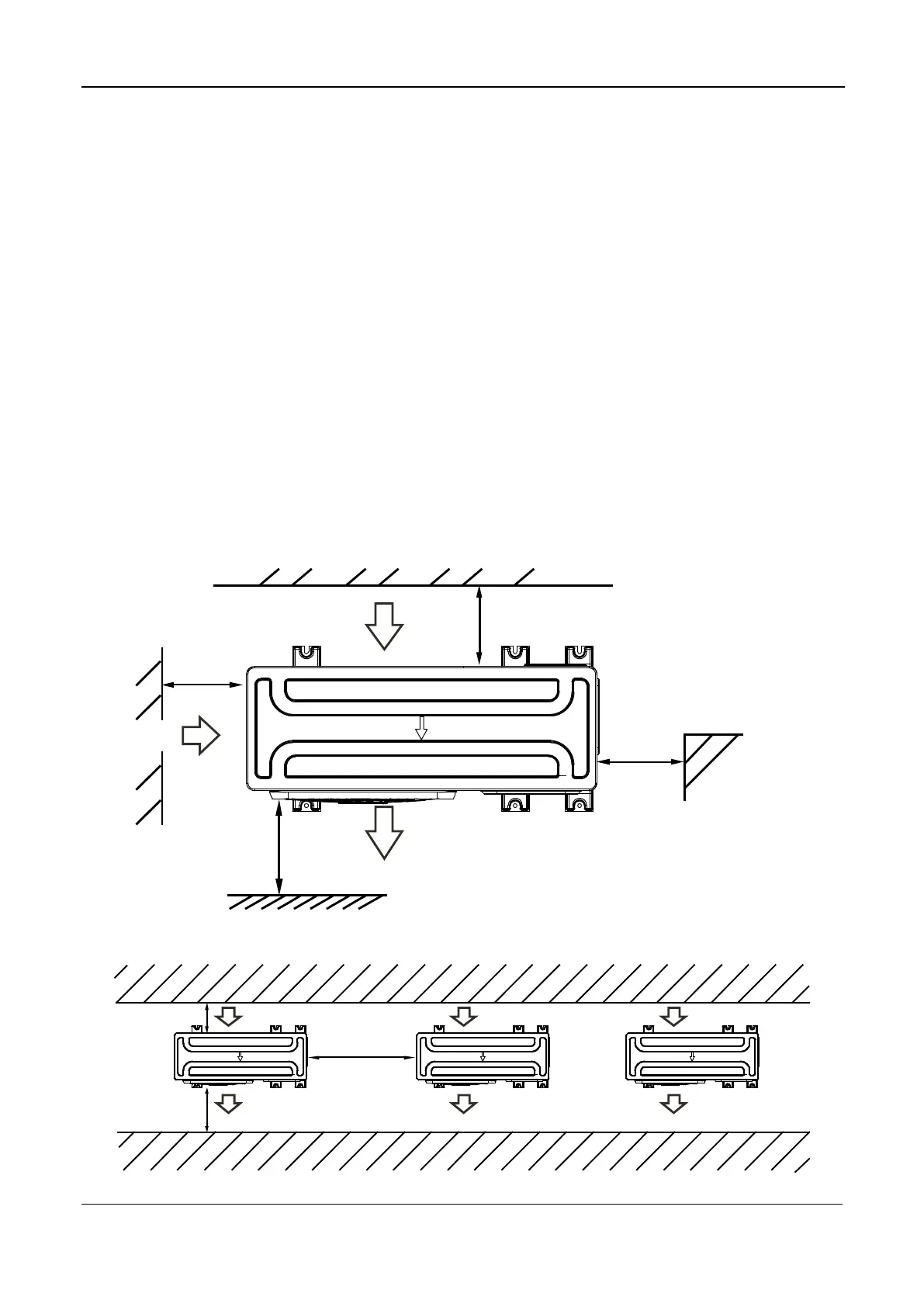

3.1 Installating space
Single unit installation
Parallel connect the two units or above
>300
>600
>
300
>
3000
(Wall or obstacle)
Maintain the electric
wire and pipeline
Air outlet
Air inlet
Air inlet
