R410A Full DC Inverter Split Duct Type Technical Manual MCAC-UTSM-201503
25
2. Installation of Duct Type Indoor Units
2.1 Installating space

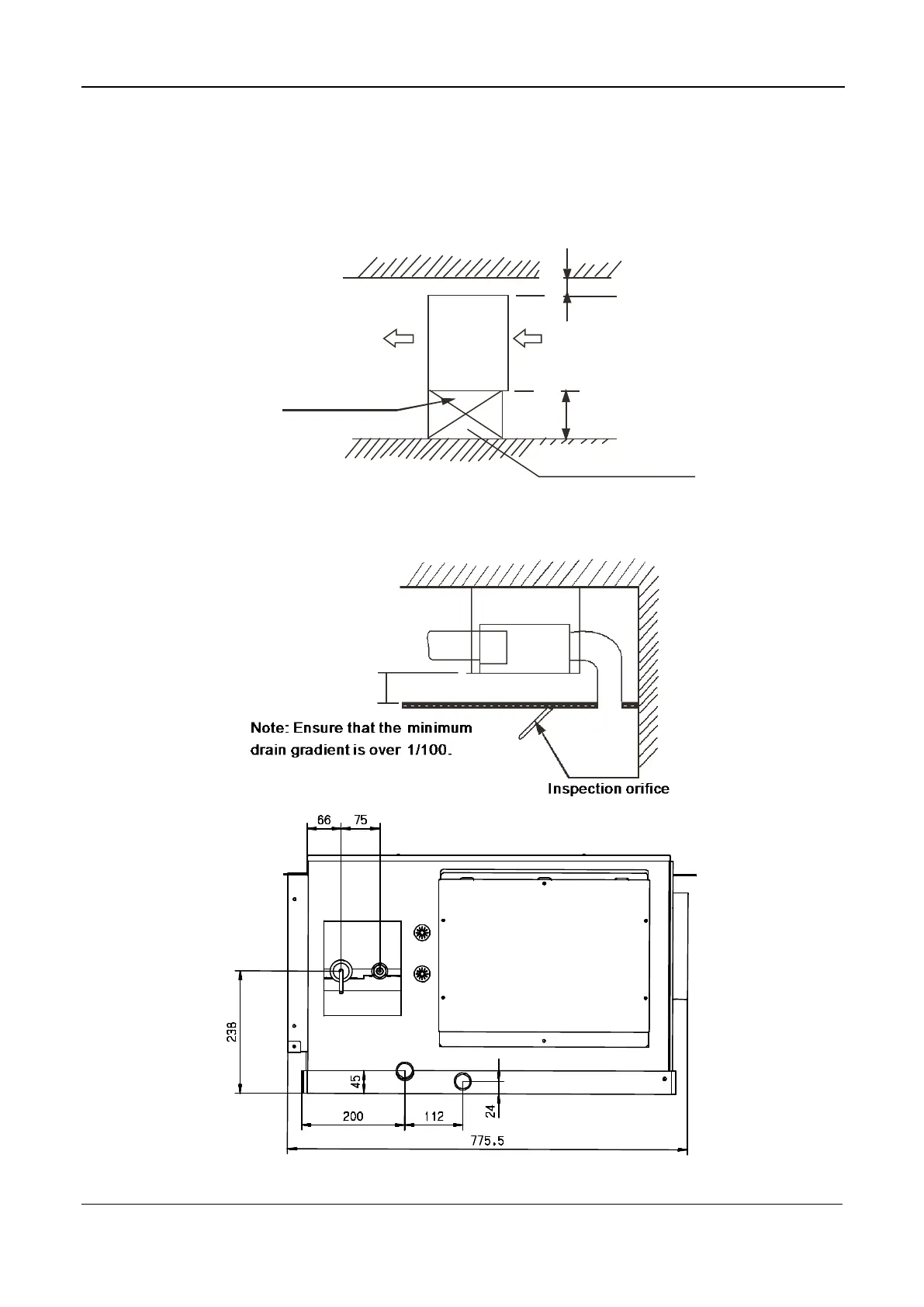

Ensure enough space required for installation and maintenance. (Unit:mm)
Maintenance space
Inspection orifice
600mmX600mm
Over 600 mm
Over 500 mm
Gas side liquid side
Side view (Pipes)
outlet
