R410A Full DC Inverter Split Duct Type Technical Manual MCAC-UTSM-201503
33
25m
50m
30m
Max. actual length of pipe (L)
Allowed
value
Height difference
between indoor
unit and outdoor
unit (H)
Outdoor
(upper)
Outdoor
(lower)
Max. height
di
f
ference

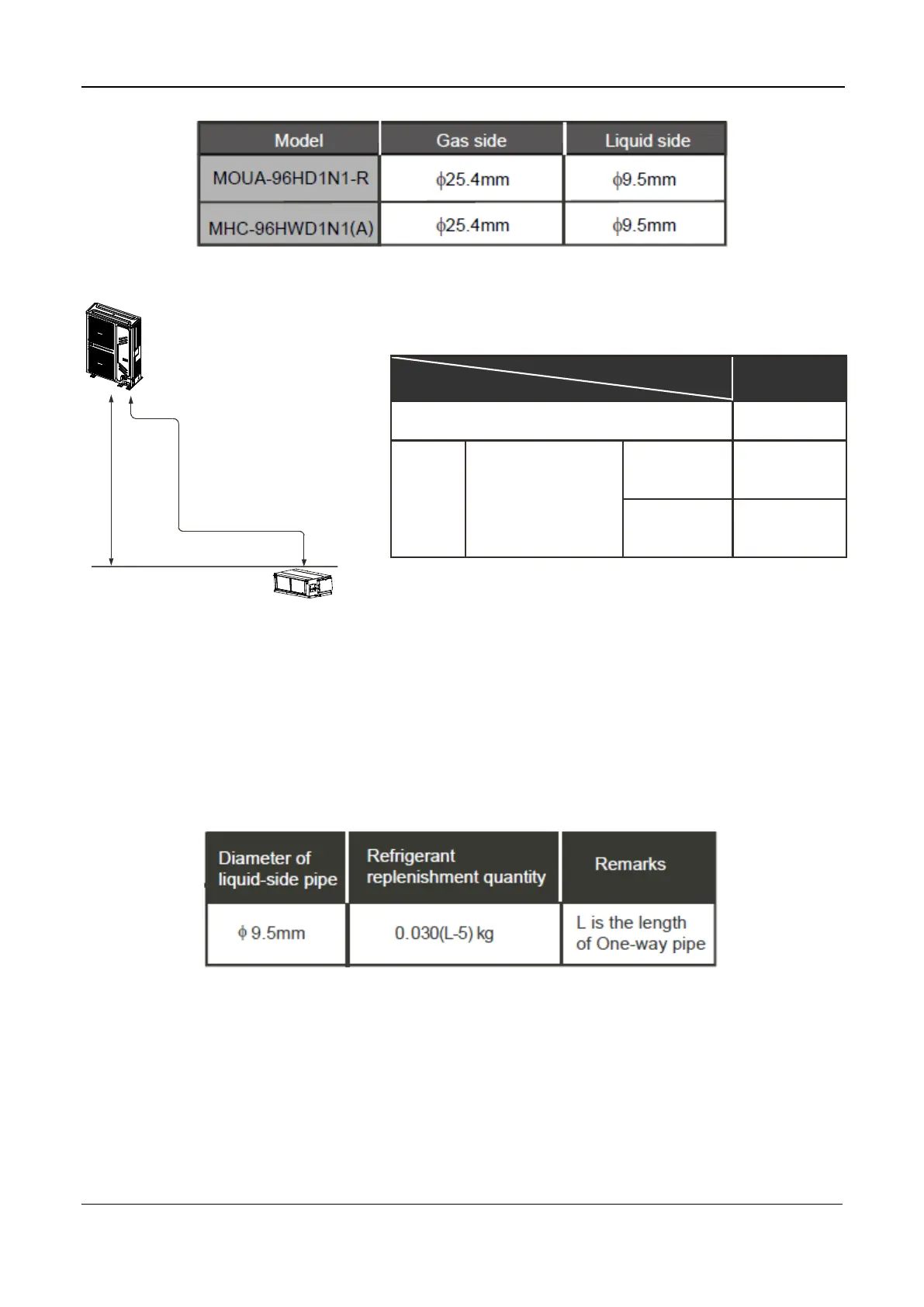

4.2 Allowed length of refrigerant pipe and height difference
4.3 Refrigerant Replenishment Quantity
For one-way pipe whose length is no longer than 5m, please refer to nameplate for refrigerant filling
amount.No extra refrigerant is needed.
One-way pipe whose length is longer than 5m, additional refrigerant quantity should be calculated by
pipe diameter and length of outdoor and indoor unit liquid side pipe.For details, please refer to table
below.
5. Electric Connection
5.1 Caution
Use special power supply for the air conditioner. Design power supplies specific to the indoor
unit and outdoor unit. The supply voltage must comply with the nominal voltage.
The external supply circuit of the air conditioner must have a ground wire, and the power supply
ground wire of the indoor unit must be connected with the external ground wire firmly.
Outdoor unit
Max. pipe length L≤50m
Height di
f
ference between indoor
unit and outdoor unit H≤25m
Indoor unit
To Next Page
