Indoor Unit Disassembly 3
2. Disassembly
2.1 Front Panel

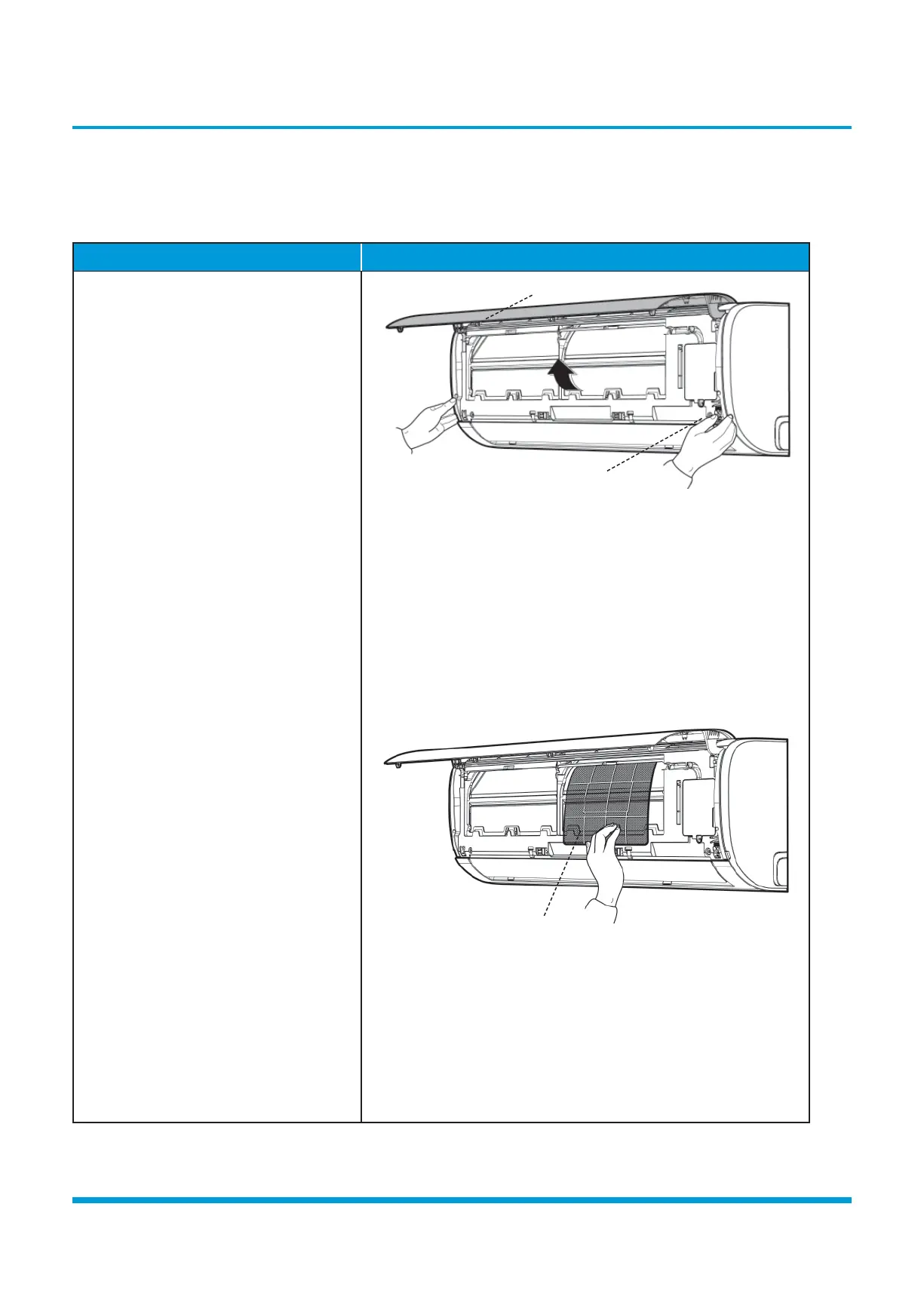

Procedure Illustration
1) Hold the front panel by the tabs on
the both sides and lift it (see CJ_
MA_001).
2) Push up the bottom of an air fi lter,
and then pull it out downwards (see
CJ_MA_002).
CJ_MA_001
CJ_MA_002
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Tab
Filter
