Indoor Unit Disassembly 11
2.3 Evaporator
Note: Remove the front panel and electrical parts (refer to 1. Front panel and 2. Electrical parts) before
disassembling evaporator.

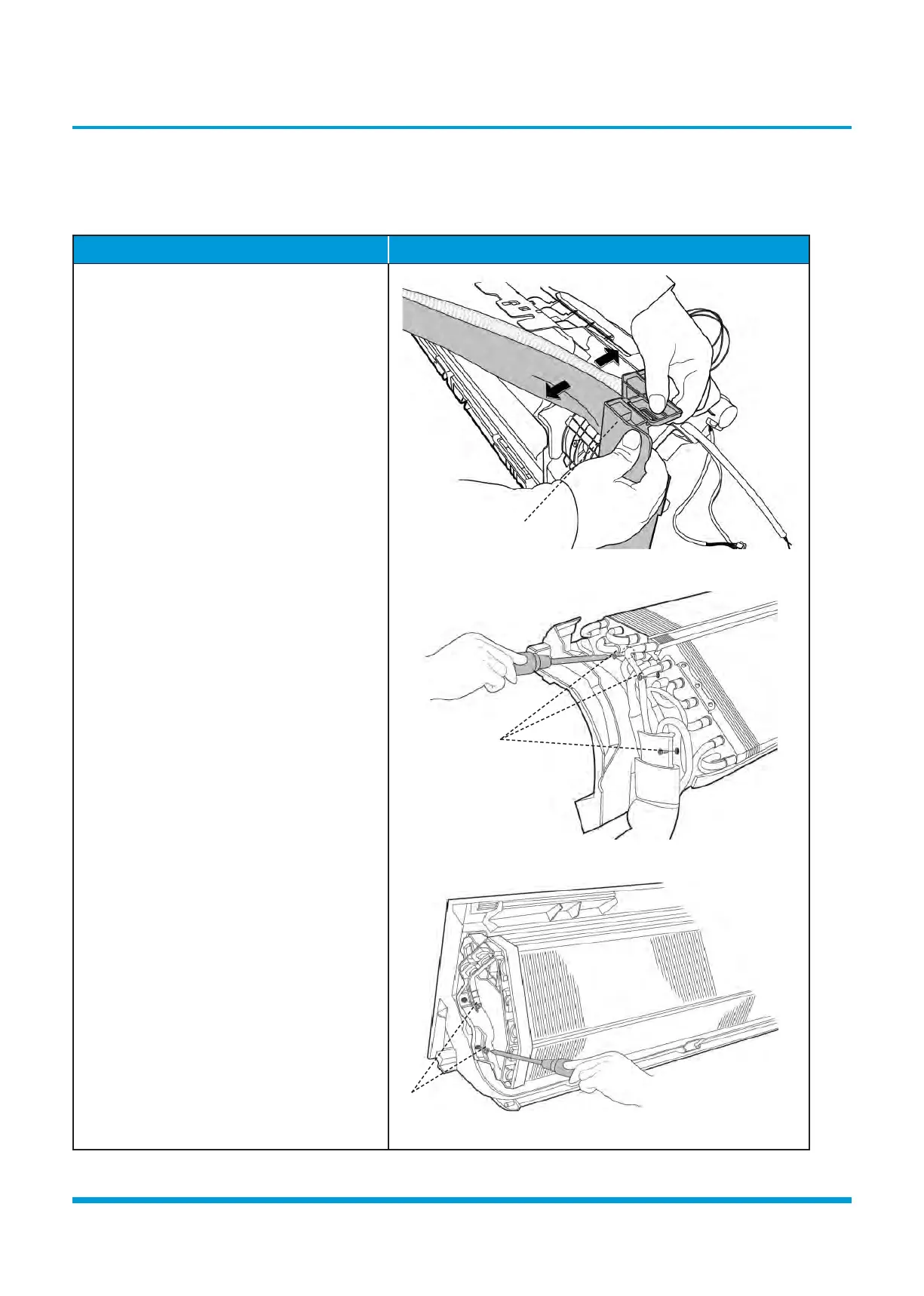

Procedure Illustration
1) Disassemble the pipe holder located at the
rear of the unit (see CJ_MA_016).
2) Remove the screws on the evaporator
located at the fi xed plate (see CJ_
MA_017).
3) Remove the two screws on the evaporator
located at the base of the bearing side (see
CJ_MA_018).
CJ_MA_016
CJ_MA_017
CJ_MA_018
Note: This section is for reference only. Actual unit appearance may vary.
Pipe Holder
Screws
Screws
To Next Page
