Outdoor Unit Disassembly 45
3.3 Fan Assembly
Note: Remove the panel plate (refer to 3.1 Panel Plate) before disassembling fan or remove air outlet grille
before disassembling fan.
Procedure Illustration
1) Remove the nut securing the fan
with a spanner (see CJ_ODU_
FAN_001).
2) Remove the fan.

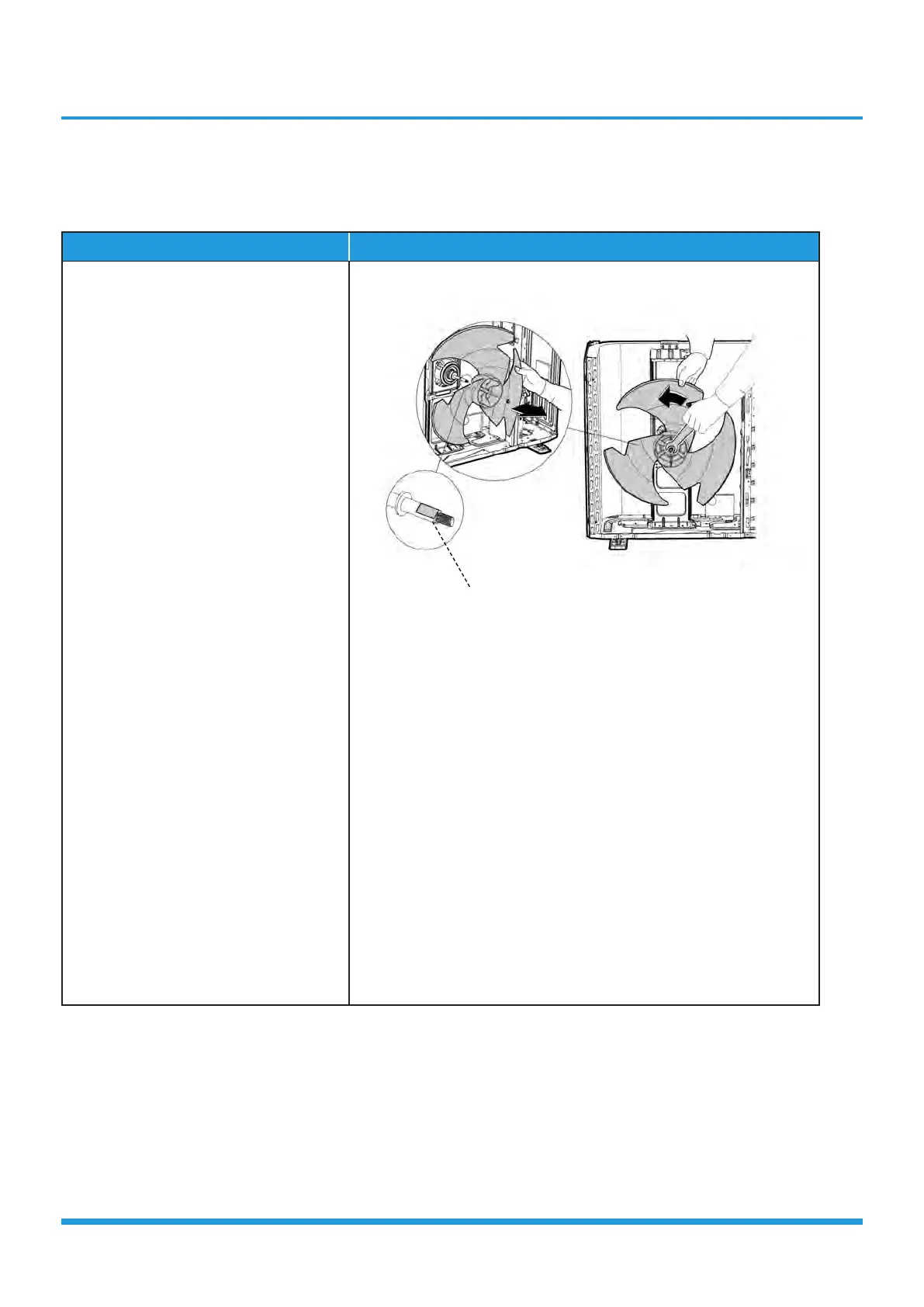

CJ_ODU_FAN_001
Note: This section is for reference only. Actual unit appearance may vary.
D-cut
