Outdoor Unit Disassembly 30
6. X101
Procedure Illustration
1) Turn off the air conditioner and the
power breaker.

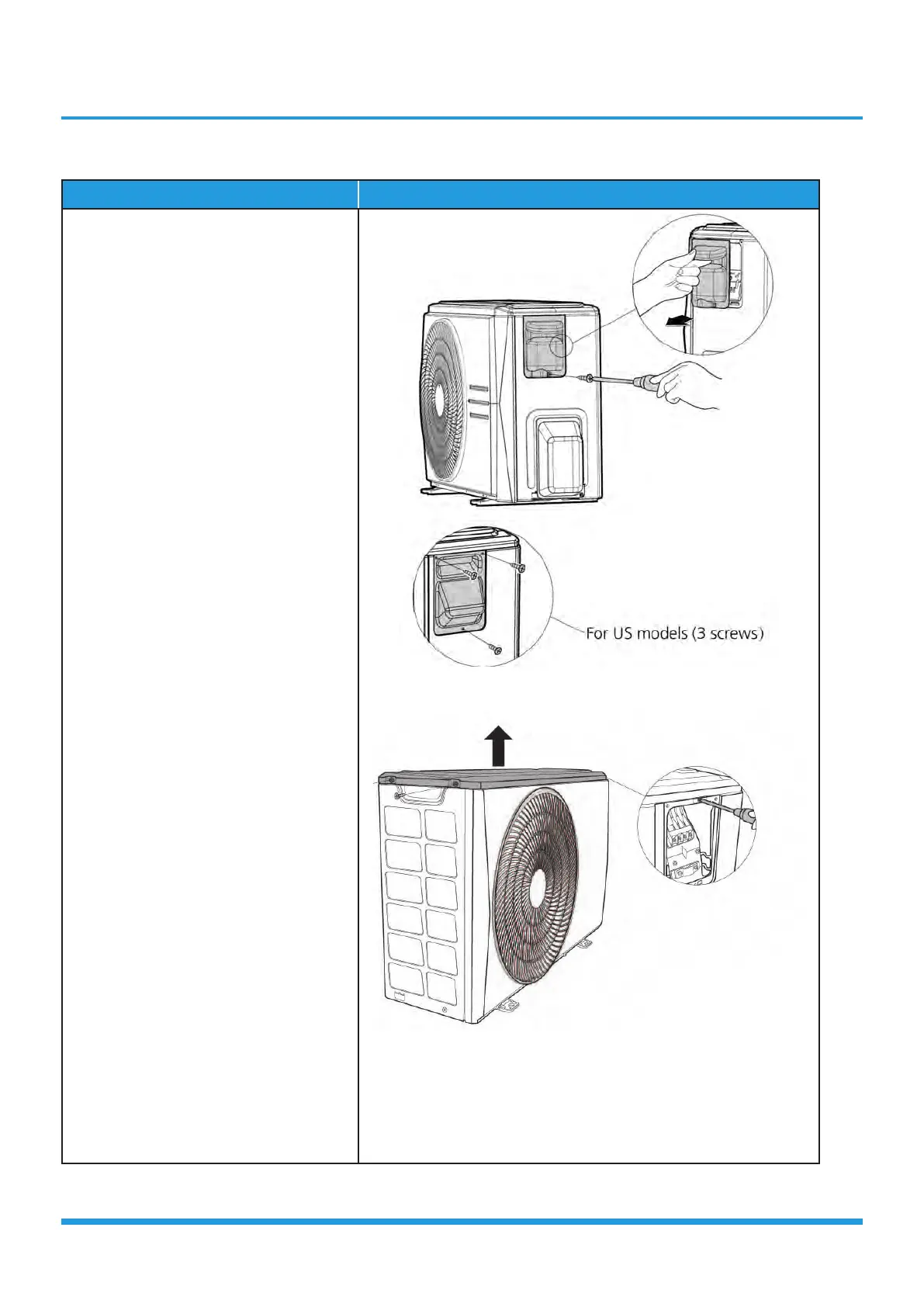

2) Remove the screw of the big handle
and then remove the big handle
(1 screws) (see CJ_X101_001).
3) Remove the screws of the top cover
and then remove the top cover (3
screws). One of the screws is located
underneath the big handle (see CJ_
X101_002).
CJ_X101_001
CJ_X101_002
Note: This section is for reference only. Actual unit appearance may vary.
