Outdoor Unit Disassembly 31
Procedure Illustration

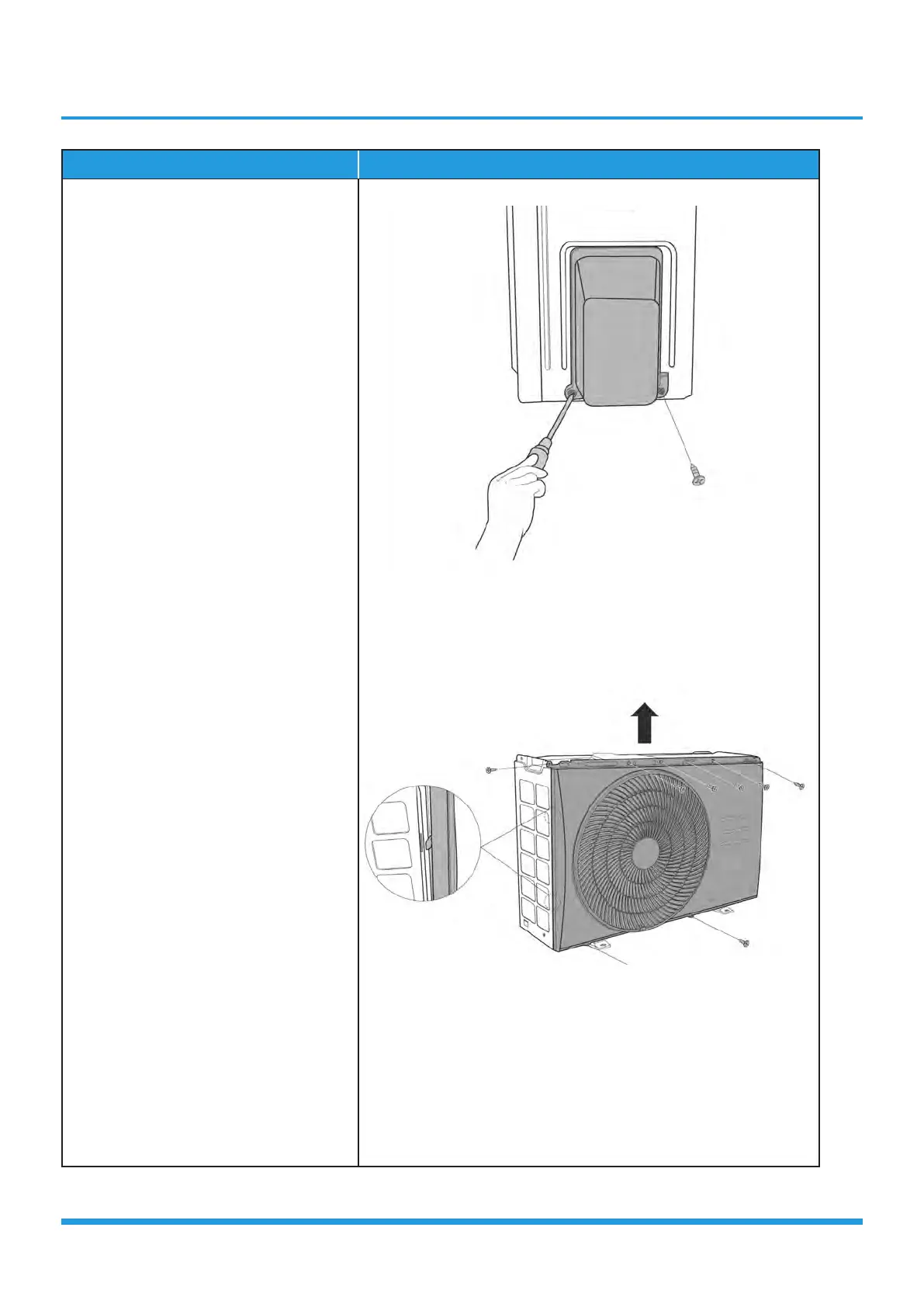

4) Remove the screws of water collecting
cover and then remove the water
collecting cover (2 screws) (see CJ_
X101_003).
5) Remove the screws of the front
panel and then remove the front
panel (6 screws(onoff models) or
8 screws(inverter models) (see CJ_
X101_004).
CJ_X101_003
CJ_X101_004
Note: This section is for reference only. Actual unit appearance may vary.
