Outdoor Unit Disassembly 17
2. BA01

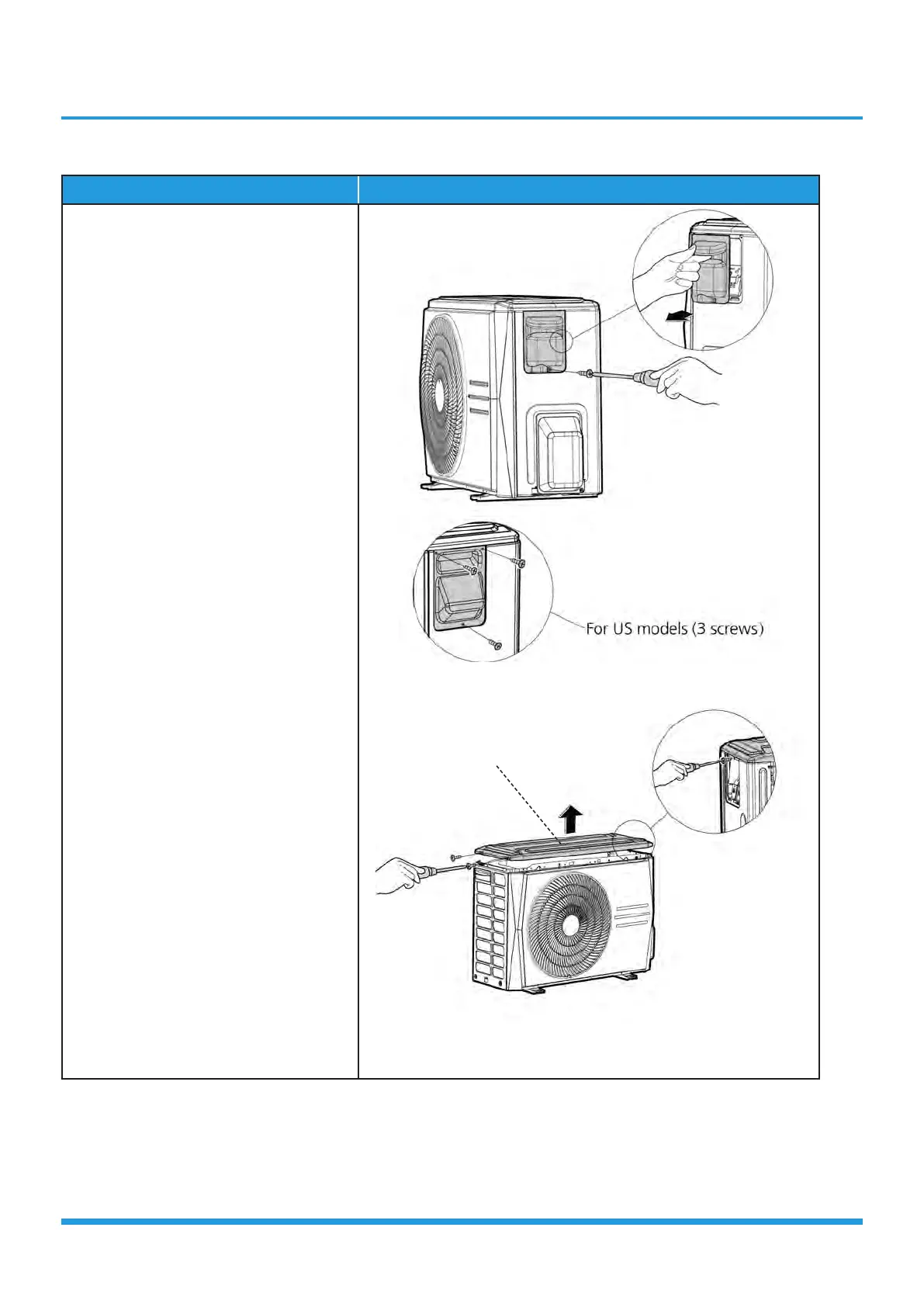

Procedure Illustration
1) Turn off the air conditioner and the
power breaker.
2) Remove the screws of the big handle
and then remove the big handle
(3 screws) (see CJ_BA01_001).
3) Remove the screws of the top cover
and then remove the top cover (3
screws). One of the screws is located
underneath the big handle (see CJ_
BA01_002).
CJ_BA01_001
CJ_BA01_002
Note: This section is for reference only. Actual unit appearance may vary.
Top Cover
To Next Page
