Outdoor Unit Disassembly 18
Procedure Illustration

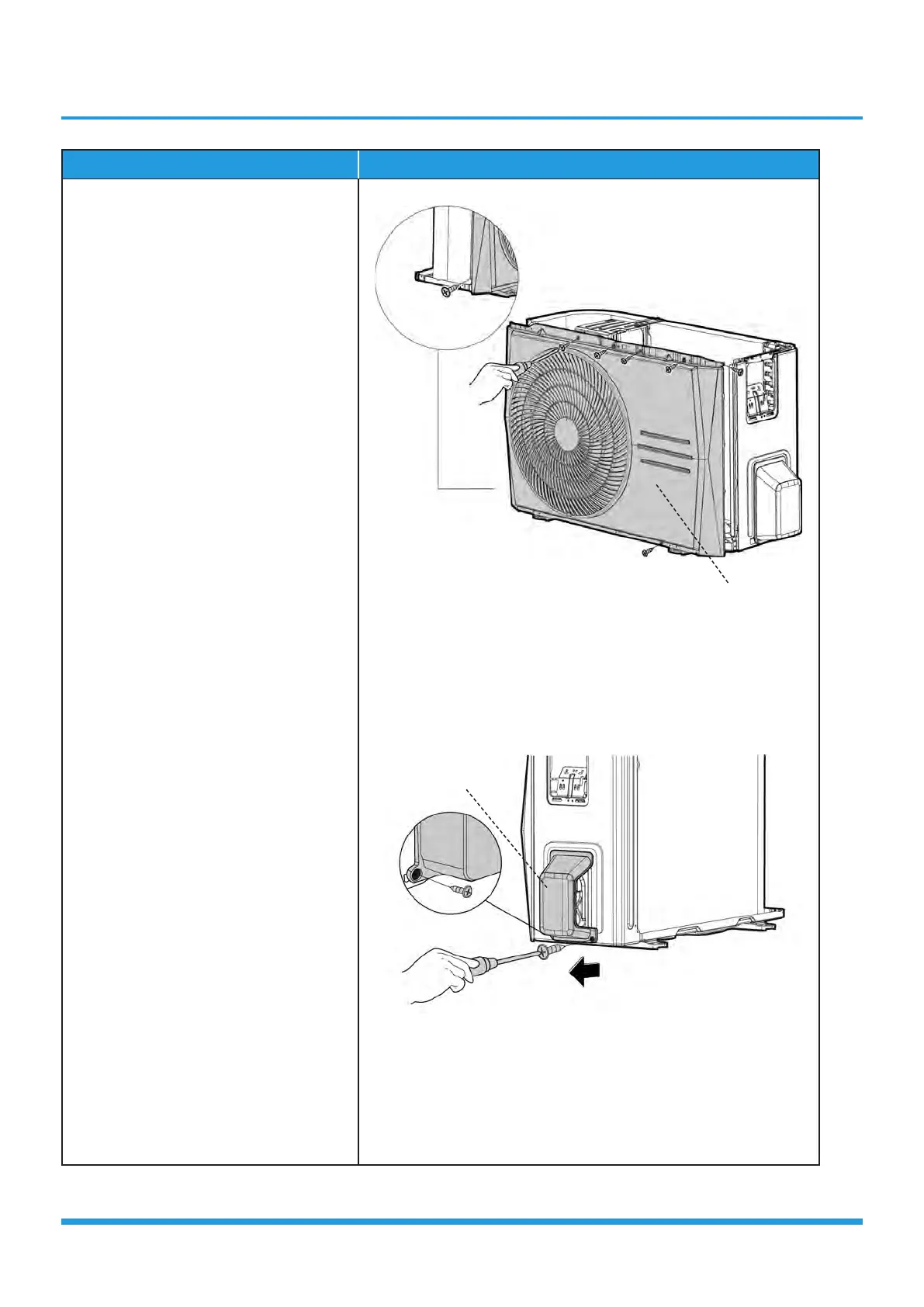

4) Remove the screws of the front panel
and then remove the front panel (7
screws) (see CJ_BA01_003).
5) Remove the screws of water collecting
cover and then remove the water
collecting cover (2 screws) (see CJ_
BA01_004).
CJ_BA01_003
CJ_BA01_004
Note: This section is for reference only. Actual unit appearance may vary.
Front Panel
Water Collecting Cover
To Next Page
