Indoor Unit Disassembly 14
2.5 Step motor
Note: Remove the front panel and electrical parts (refer to 1. Front panel, 2. Electrical parts) before
disassembling step motor.
Procedure Illustration

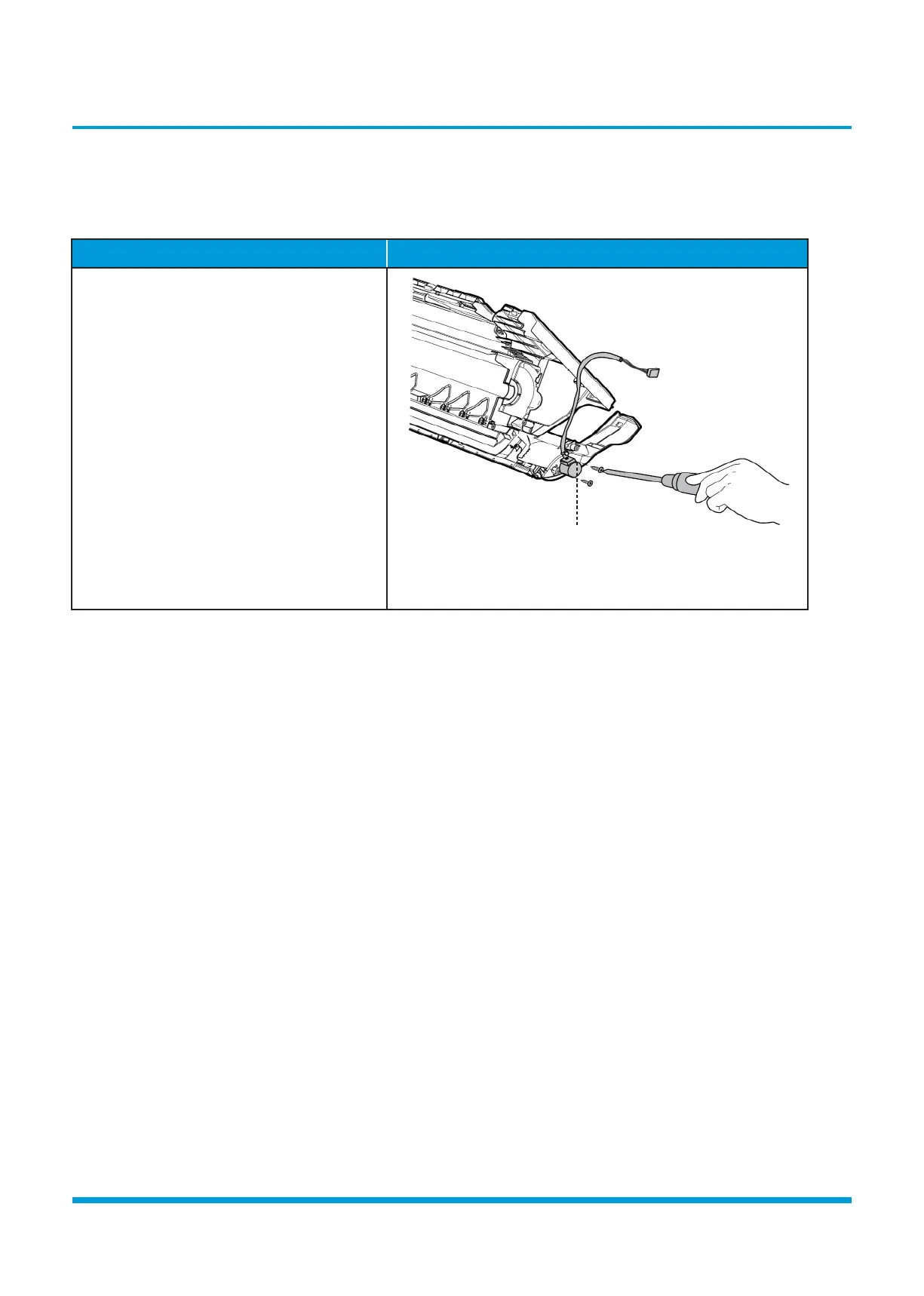

1) Remove the two screws, then remove the
stepping motor (see CJ_MA_023).
CJ_MA_023
Note: This section is for reference only. Actual unit appearance may vary.
Stepping Motor
To Next Page
