 Outdoor Unit Disassembly 44 
Procedure Illustration

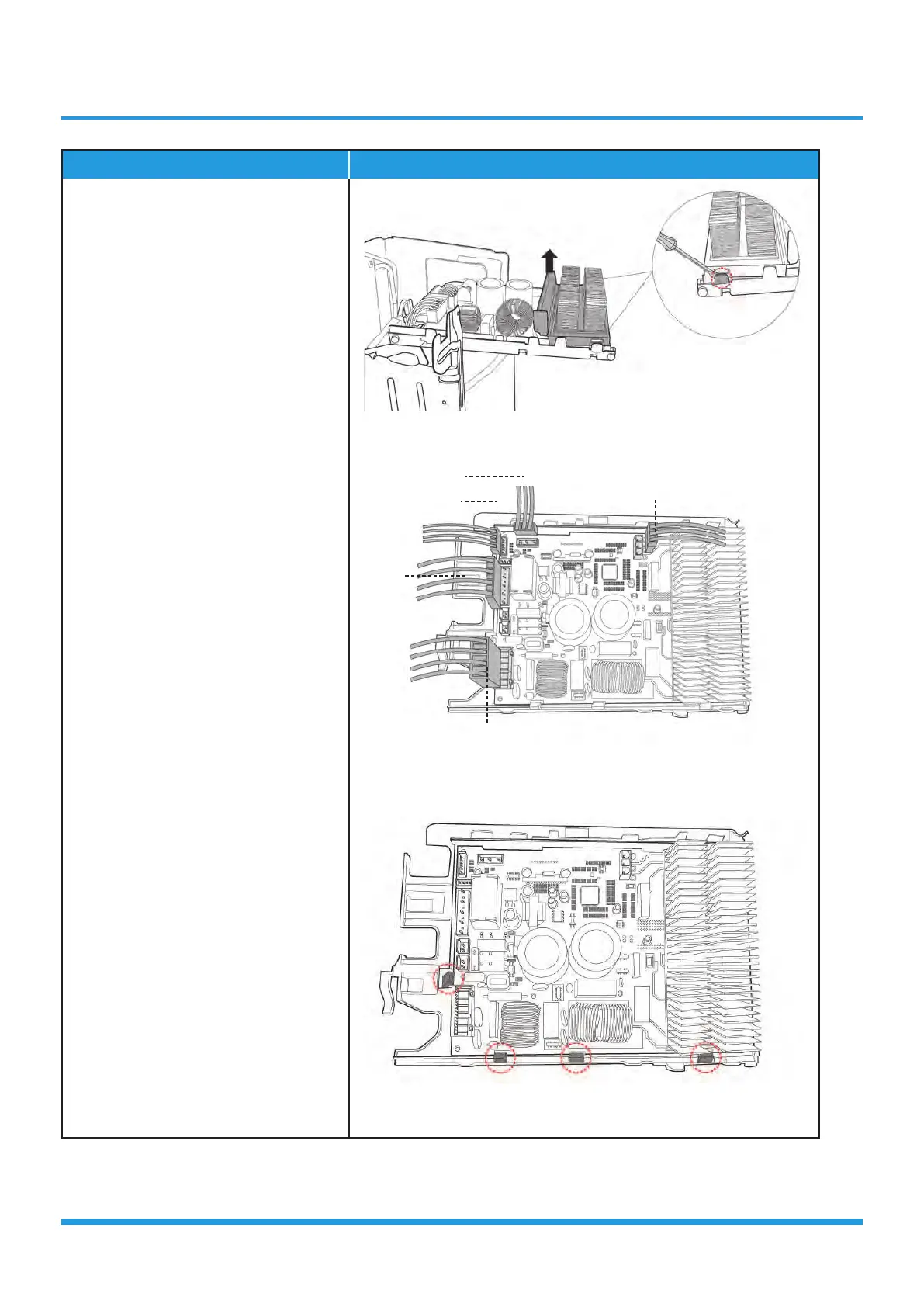

4) Remove the fixing board (2 hooks)
(see CJ_ODU_PCB_009-4).
5) Disconnect the connectors from
the electronic control board (see
CJ_ODU_PCB_009-3).
6) Then remove the electronic control
board (4 hooks).
CJ_ODU_PCB_009-4
CJ_ODU_PCB_009-5
CJ_ODU_PCB_009-6
Note: This section is for reference only. Actual unit appearance may vary.
Compressor
T3, T4, TP
AC Fan
DC Fan
Power supply
