3. Outdoor Unit Disassembly
3.1 Panel Plate
1. AA01 / AB01

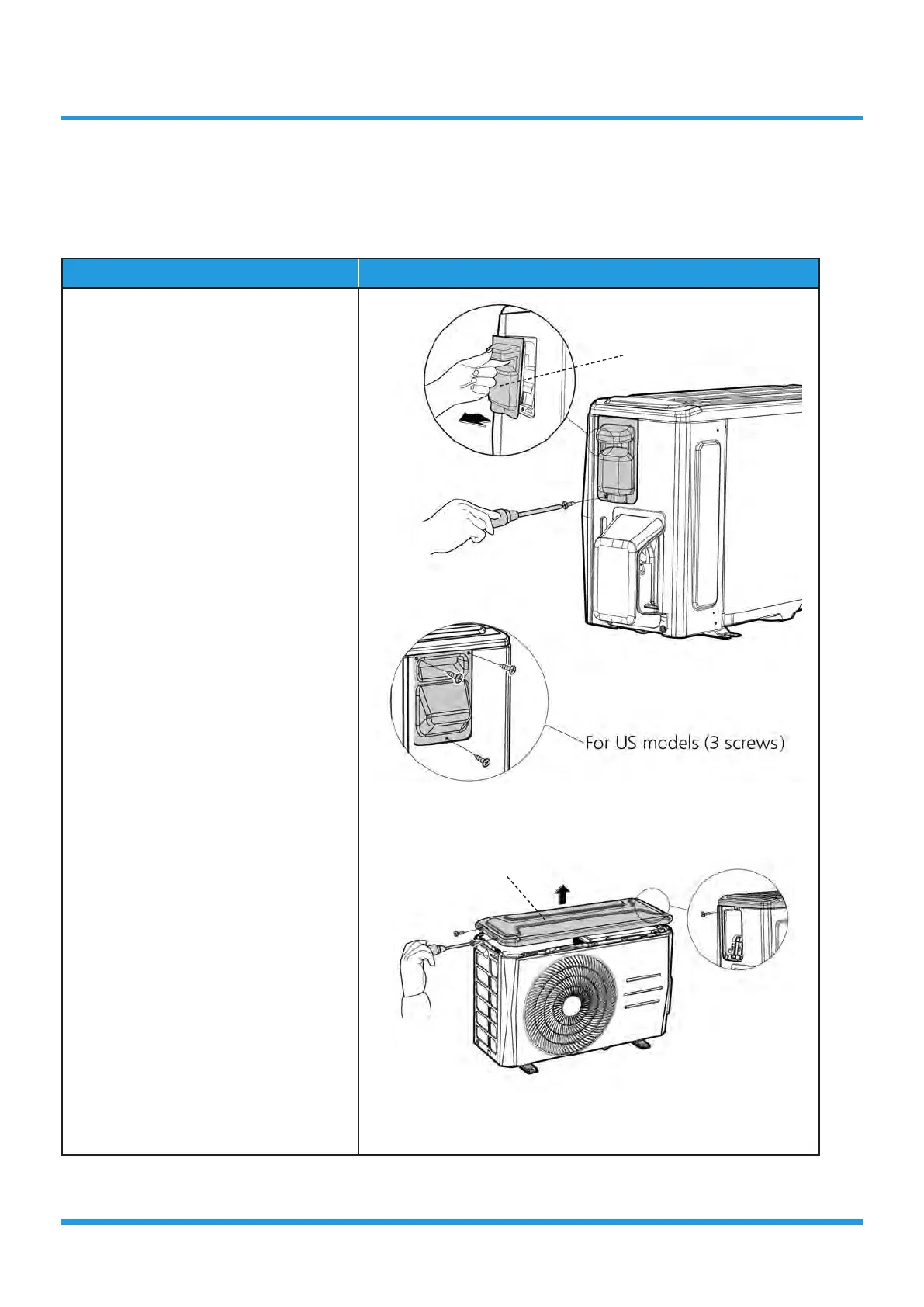

Procedure Illustration
1) Turn off the air conditioner and the
power breaker.
2) Remove the screws of the big handle
and then remove the big handle
(1 screws) (see CJ_AA01_001).
3) Remove the screws of the top cover
and then remove the top cover (3
screws). One of the screws is located
underneath the big handle (see CJ_
AA01_002).
CJ_AA01_001
CJ_AA01_002
Note: This section is for reference only. Actual unit appearance may vary.
Big Handle
Top Cover
To Next Page
