2. Installation of Duct Type Indoor Units
2.1 Installating indoor units

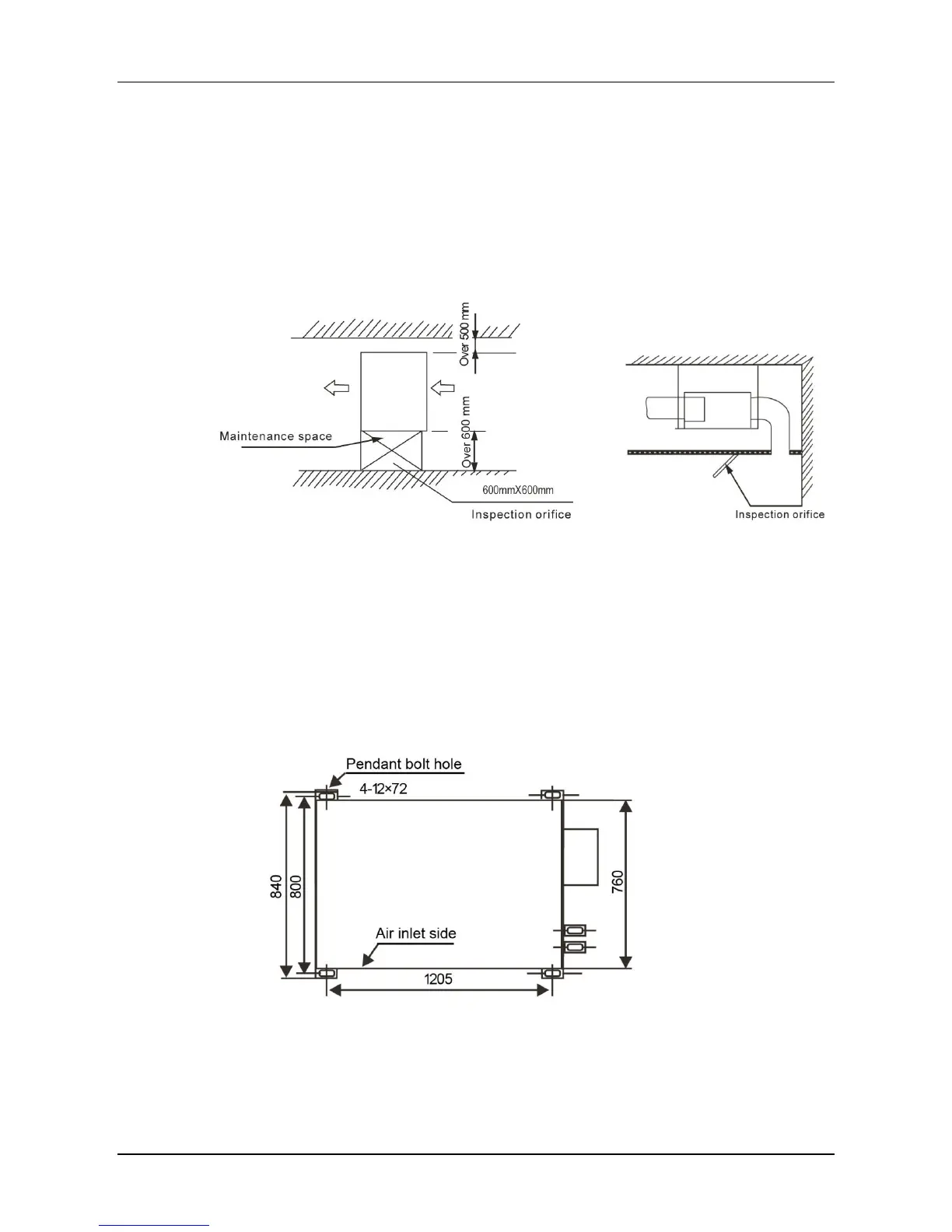

As the following picture, when install the indoor unit, select the enough solid and level site
with enough space for installation and maintance.
The inspection orifice should be enough larger to repair and maintenance the unit.
Use Ф10 or bigger screws. The screw material is high-quality carbon steel whose surface is
zinc plated or undergoes other anti-rust treatment, or stainless steel.
Fix the pendant bolts firmly and reliably in light of the specifice situsation.
The pendant bolt hole figure is as following picture.
MTA-76C(H)RN1, MTA-96C(H)RN1, MHB-76C(H)RN1, MHB-96C(H)RN1:
(Unit: mm)
