Midea R410A T3 Top-discharge Split Type Series 50Hz MCAC-UTSM-201501
15

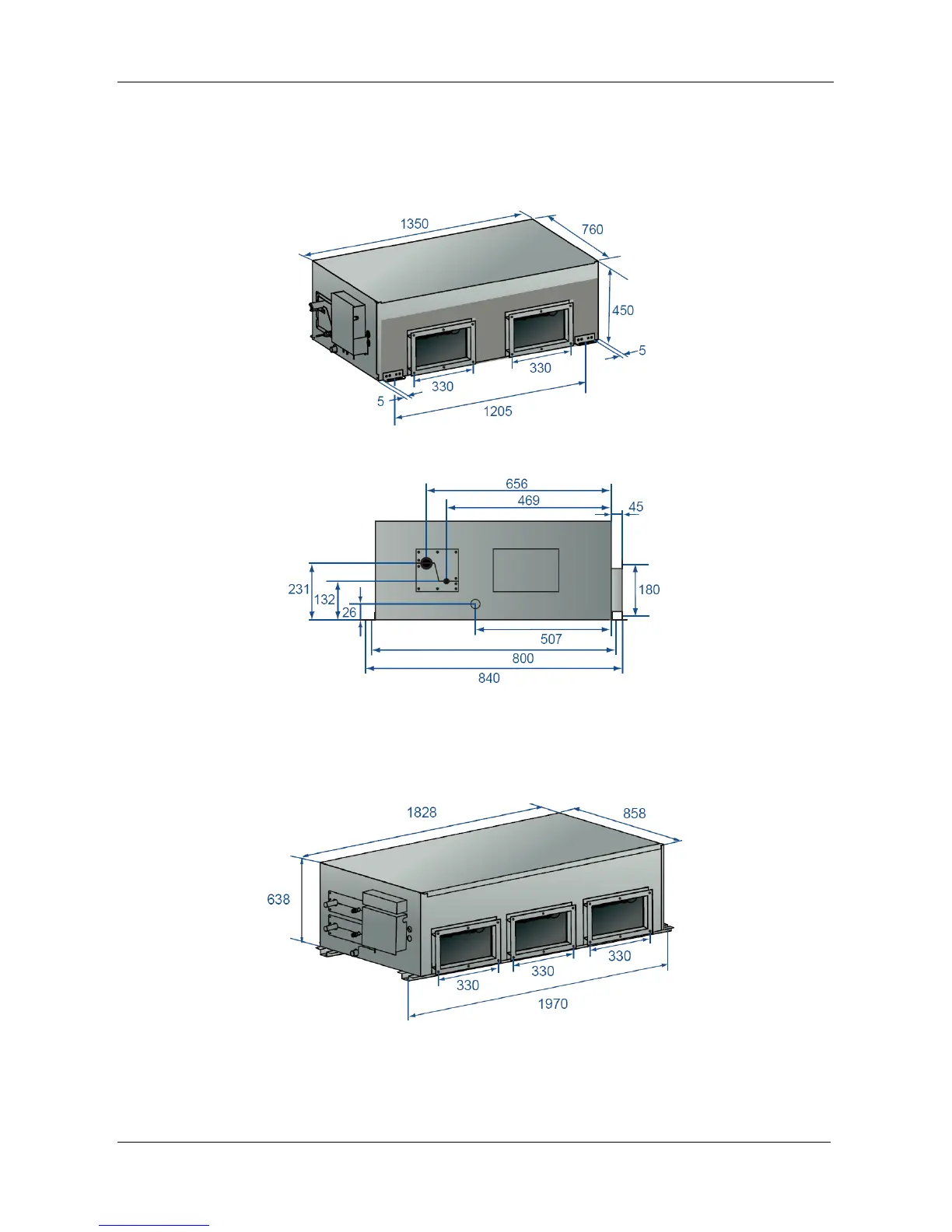

3. Dimensions (Unit: mm)
MTA-76C(H)RN1, MTA-96C(H)RN1, MHB-76C(H)RN1, MHB-96C(H)RN1:
Pipe side view
MTA-120C(H)RN1, MTA-150CRN1:
