Midea MTA-76C(H)RN1

MCAC-UTSM-201501 Midea R410A T3 Top-discharge Split Type Series 50Hz
62

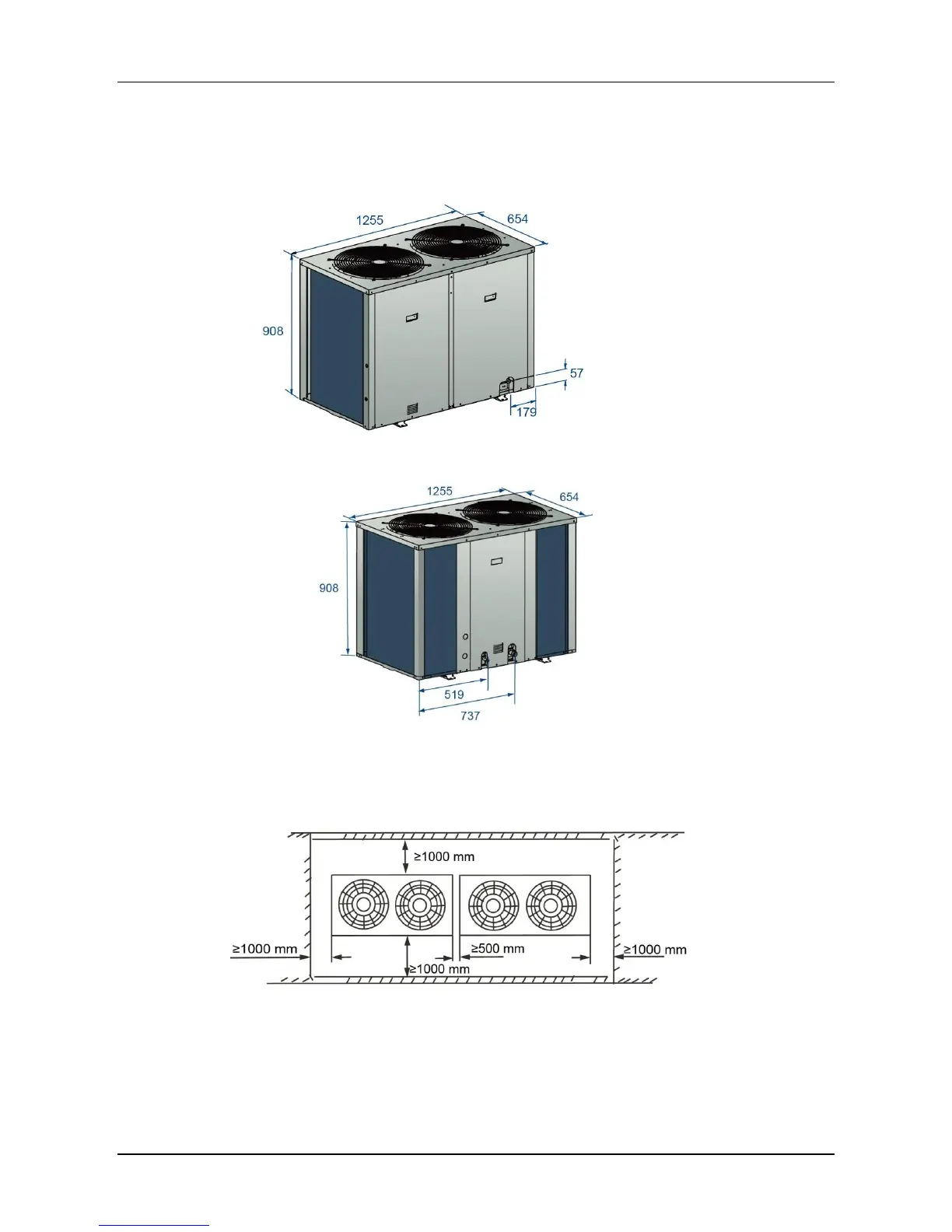

2. Dimension
MOV-76C(H)N1-C, MOV-96C(H)N1-C:
(Unit: mm)
MOV-120C(H)N1-C
(Unit: mm)
3. Service Space
MOVA-76H-D, MOVA-76C-D, MOVA-96H, MOVA-96C
Note:
1. In case any obstacles exist above the outdoor unit, such obstacles must be 2000mm above the outdoor
unit.
2. If miscellaneous articles are piled around the outdoor unit, such articles must be 400mm below the top of
the outdoor unit.
