Midea MTA-76C(H)RN1

Midea R410A T3 Top-discharge Split Type Series 50Hz MCAC-UTSM-201501
63

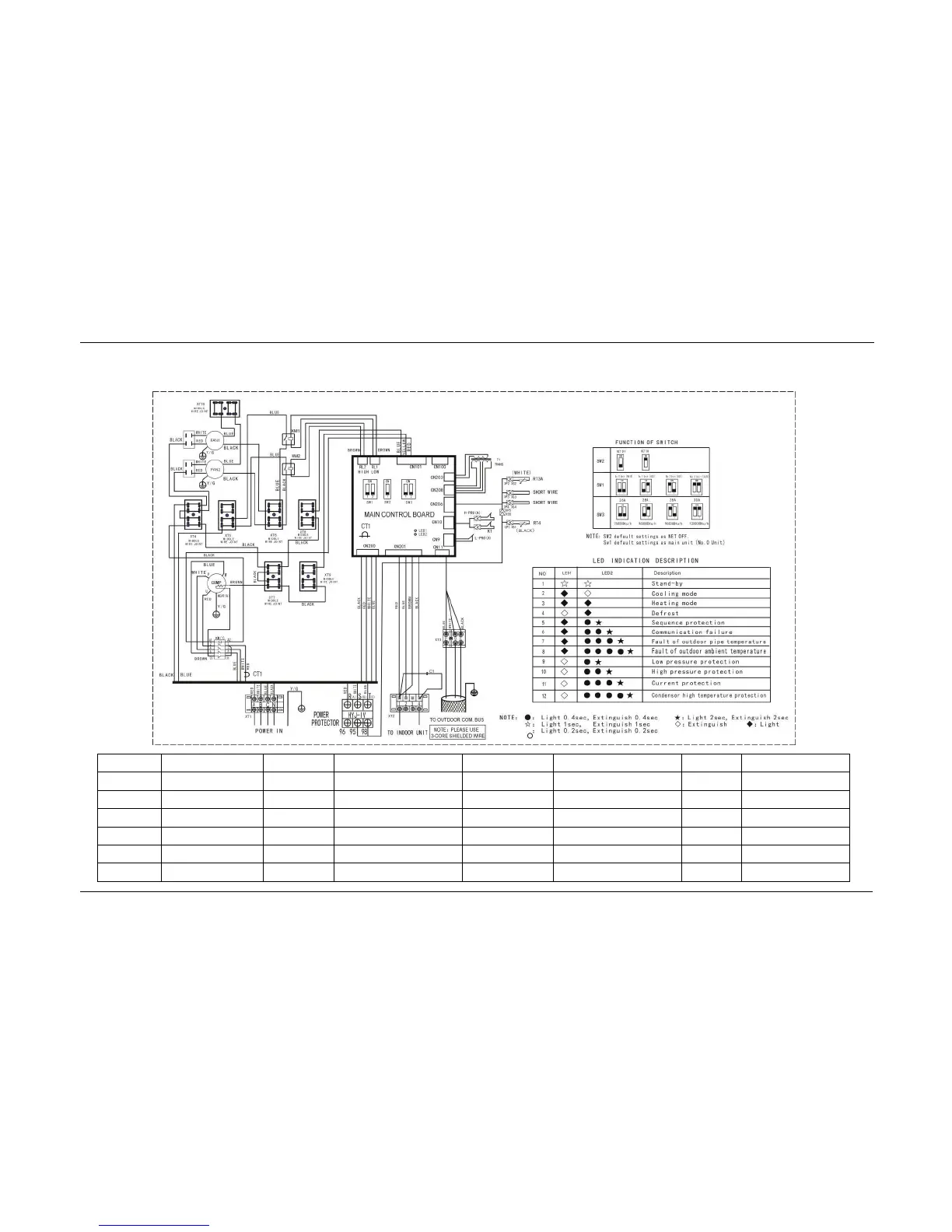

4. Wiring Diagrams
MOV-76HN1-C, MOV-96HN1-C, MOV-120HN1-C:
Item
Name
Item
Name
Item
Name
Item
Name
COMP
Compressor
HEAT(A)
Crank
RT3A
Pipe temp. sensor
T1
Transformer
FAN1-2
Outdoor fan
CT1
Current detector
RT4
Room temp. sensor
SW1-3
Switch
CAP1-2
Fan capacitance
XT1-2
4-way terminal
XS1-5, XP1-5
Connectors
C1
Filter capacitor
S.V
4-way valve
XT3
3-way terminal
L-PRO(A)
Low pressure switch
KM1-2
Relay
KM(1)
AC contactor
H-PRO(A)
High pressure switch
K1
Temp. protect switch
CN8-208
P.C. board socket
XT4-10
Middle wire joint
-
-
-
-
-
-
