Midea R410A T3 Top-discharge Split Type Series 50Hz MCAC-UTSM-201501
77
5. Connection of Refrigerant Pipe

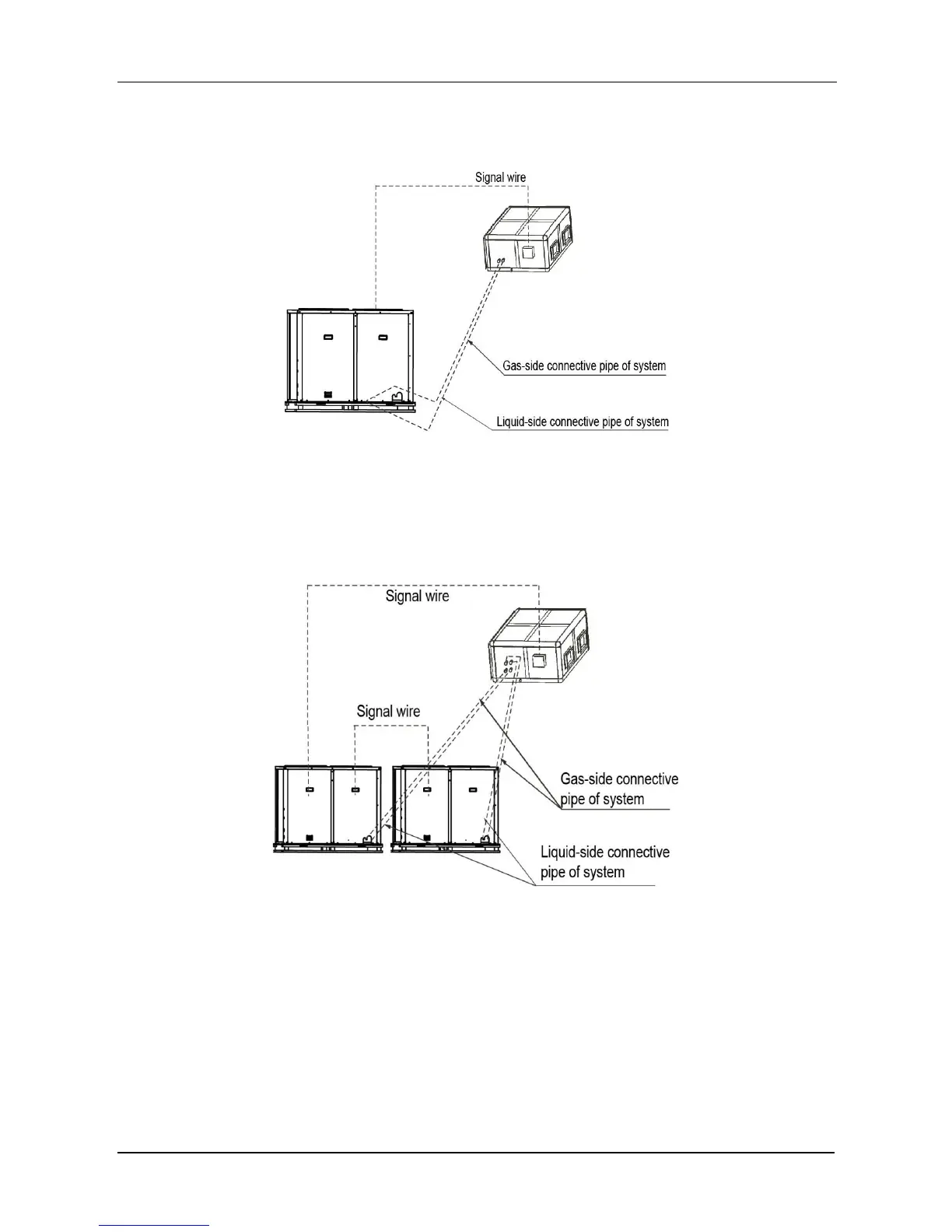

Schematic diagram of connection between indoor unit and outdoor unit:
MTA-76C(H)RN1 + MOV-76C(H)N1-C
MTA-96C(H)RN1 + MOV-96C(H)N1-C
MTA-120C(H)RN1 + MOV-120C(H)N1-C
MTA-150CRN1 + MOV-76C(H)N1-C (2 sets)
