MCAC-UTSM-201501 Midea R410A T3 Top-discharge Split Type Series 50Hz
76

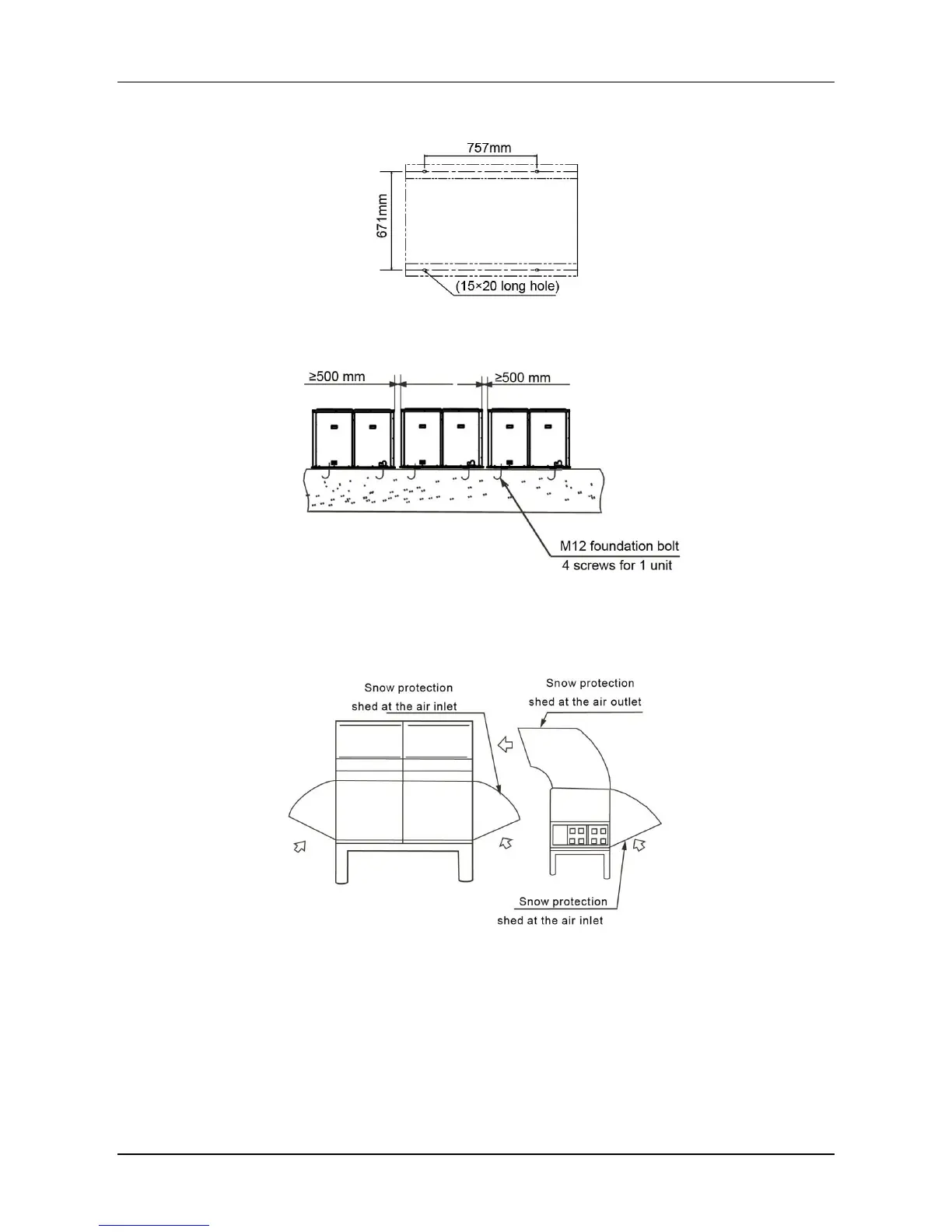

The distance of the foundation bolt is shown in following picture.
MOV-76C(H)N1-C, MOV-96C(H)N1-C, MOV-120C(H)N1-C
As the following shown picture, leave an interval between the multi-outdoor unit.
Snow protection facilities must be installed in the snowfall areas. In order to prevent influence
caused by snow, set up raised pavilion, and install snow protection sheds at the air inlet and air
outlet. The snow protection facilities are provided in the site.
