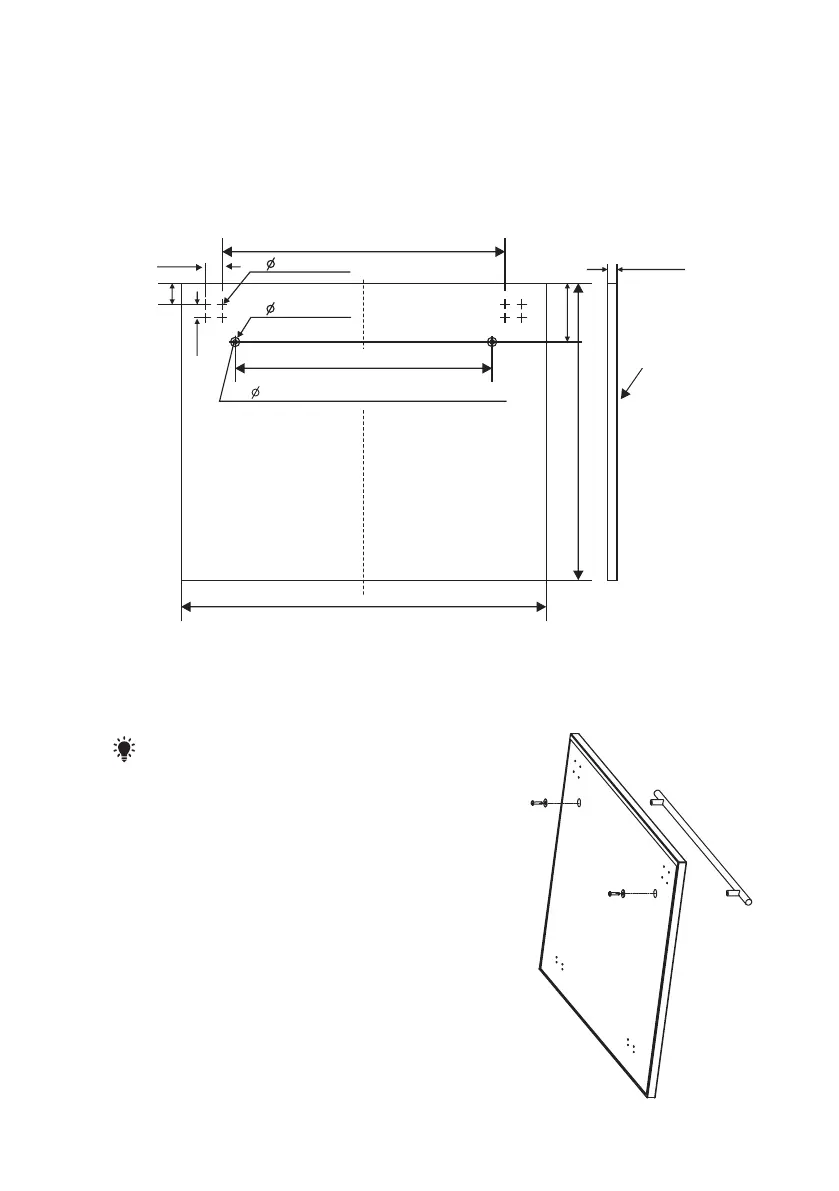

Step 2: Aesthetic panel's dimensions and installation
Weight of the decorative panel should be min 3Kg-max 4Kg.
Dim.A and B could be alterable by handle,
Dim.C, D and E could be alterable by fact,
Dim.E should be in range 16~22mm, besides the appliance assembling decorative panel.
Step 3: Assemble the decorative panel
NOTE:
If the machine has a decorative plate,
note this step.
8- 2(deep12)
2- 15(deep5)
21.5
457.5
590( )
480(D)
101
35
C
26.5
2- 6 through(A,changed be handle)
415.5(B,changed be handle)
(Unit: mm)
decorative panel
16~22(E)
20
