13. POWER/VOLUME KNOB – Turn clockwise to
turn the power on and increase the volume
level. Turn counter-clockwise to decrease the
volume level and turn the power off.
14. PTT Button – Press and hold to transmit voice
communication.
15. CALL/LOCK Button – Press to send a CALL
ALERT signal. Press and hold to turn KEY
LOCK on/off.
16. UP
s
and DOWN / SOS SIREN
t
Buttons –
Make adjustments in MENU mode. Press and
the DOWN button for 5 seconds to activate the
SOS Siren function.
17. SPEAKER – Built-in speaker.
18. ANTENNA
19. EXTERNAL SPEAKER/MIC JACK
20. MENU/WX SCAN Button – Press to access
Menu mode. Press and hold for 5 seconds to
activate the NOAA Weather Scan function.
21. MONITOR/SCAN Button – Press to enter
SCAN mode. Press and hold to enter
MONITOR mode.
22. MIC – Built-in microphone.

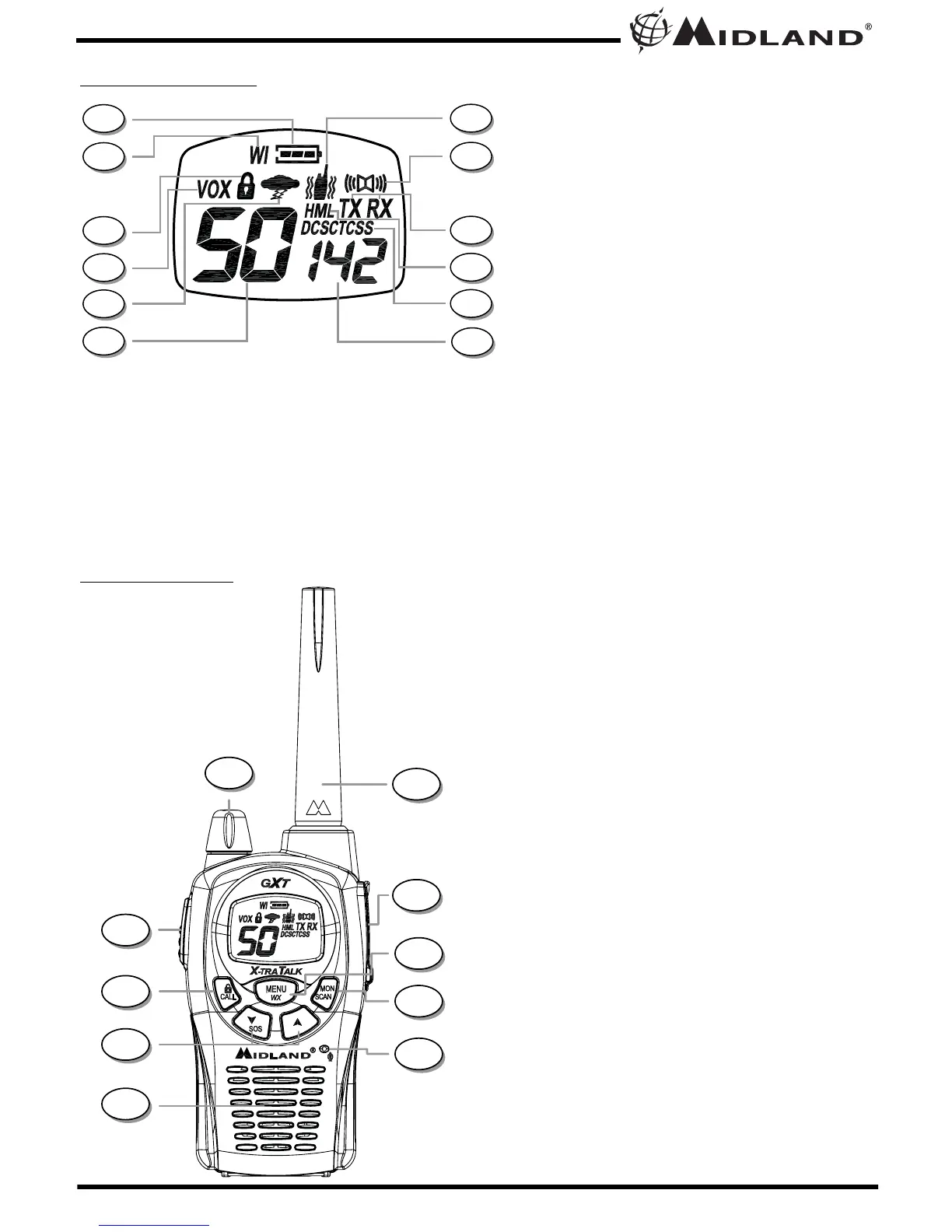

LCD DISPLAY
CONTROLS
1
13
14
15
16
17
22
21
20
19
18
Model GXT1000/1050/1191/1030 Series
Page 4
www.midlandusa.com
11
10
9
8
7
6
5
4
3
2
1. BATTERY METER – Indicates the battery
level.
2. WHISPER ICON – Indicates when the
Whisper feature is on.
3. KEY LOCK ICON – Indicates KEY LOCK
mode is on.
4. VOX ICON – Indicates when VOX mode is
active.
5. NOAA WEATHER (WX) BAND ICON–
Indicates when the radio is in Weather
Band mode.
6. CHANNEL NUMBER – Changes from
1~50 on GMRS/FRS band (1~10 on WX
band).
7. VIBRATE ALERT ICON – Indicates when
the Vibrate-Alert feature is on.
8. SOS SIREN ICON – Indicates the SOS
Siren is on.
9. TRANSMIT (TX) / RECEIVE (RX) ICON –
Indicates radio is transmitting (TX) a signal,
or radio is receiving (RX) a transmission.
10. TRANSMIT POWER LEVEL ICON –
Indicates TX Power setting (H/M/L)
11. PRIVACY CODE ICON – Indicates
Privacy Code setting (CTCSS/DCS).
12.PRIVACY CODE – Indicates Privacy Code
selected by user (oF~38/oF~104). It can
only be used on Ch 1~22.
12
To Next Page
