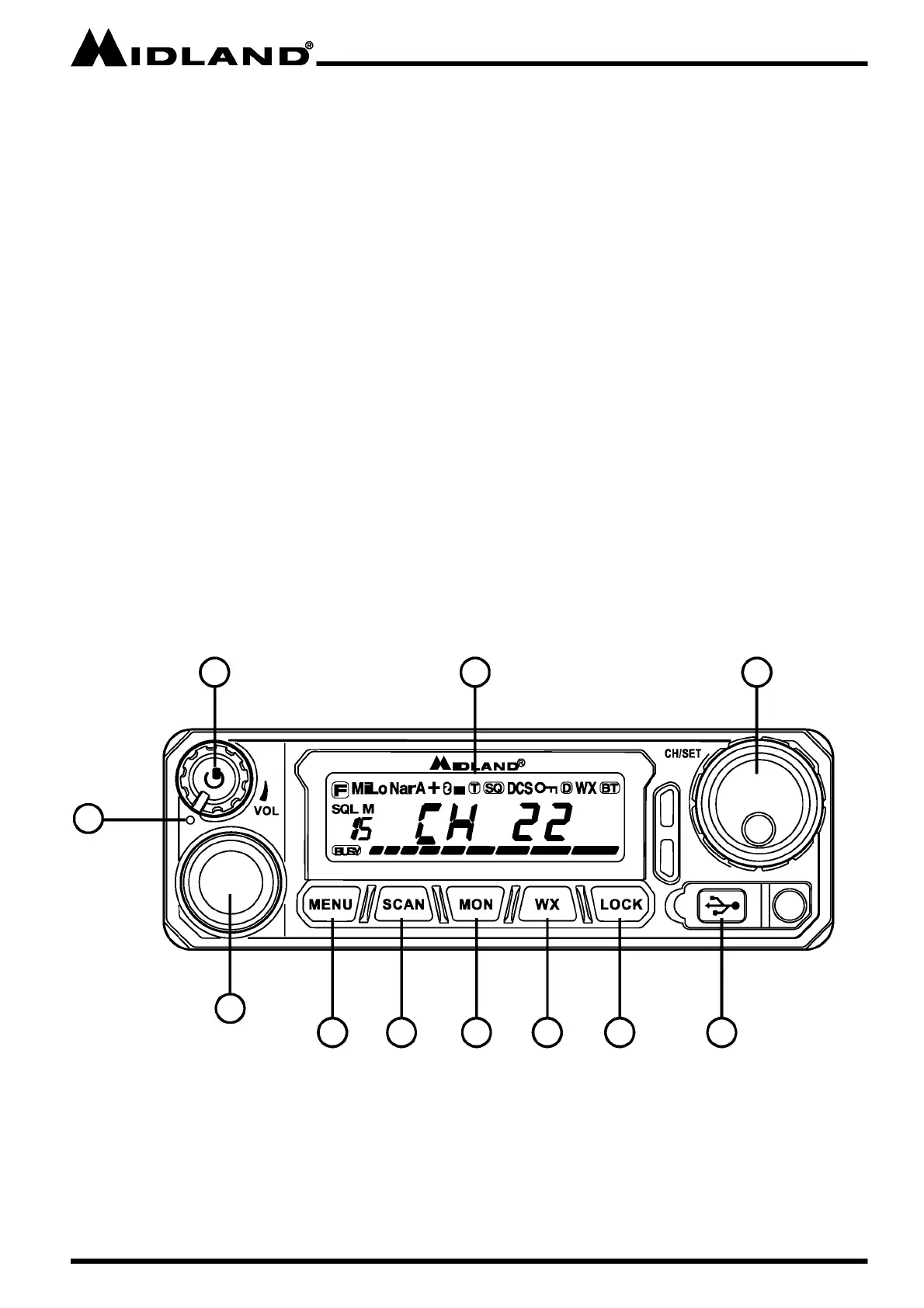

CONTROLS AND INDICATORS
RADIO OPERATING CONTROLS
1. Power and Volume Knob
2. Speaker Mic Jack
3. Menu Button
4. Scan/Scan Skip Button
5. Monitor Button
6. WX Button
7. Lock Button
8. Power Indicator
9. TX/RX Indicator
10. Channel/Menu Selection Knob
11. USB-C Port
1
34 56 7 11
109
2
8
