2 – In Vehicle Test
CPX-900
13
Select Send Results displayed at the bottom of the tester screen to send the test results to the
optional built-in printer or via email. Select Done
to return to the Main Menu.
Email
6
Printer
System Test
1. Select System Test displayed at the bottom of the screen to continue to the System Test.
2. Start the vehicle's engine and let it idle.
3. Ensure all accessories (High Beam headlights/ventilation blower etc.) are o and select Next.
The alternator output is tested.
4. When prompted, rev and hold the engine to between 2000 to 3000 rpm.
The alternator output is tested.
5. When prompted Idle the engine and and select Next.
6. Turn on the high beam headlights and ventilation blower and select Next.
The alternator output is tested.
7. When prompted, rev and hold the engine to between 2000 to 3000 rpm.
The alternator output is tested.
8. When prompted, turn o all loads and Idle the engine. Select Next.

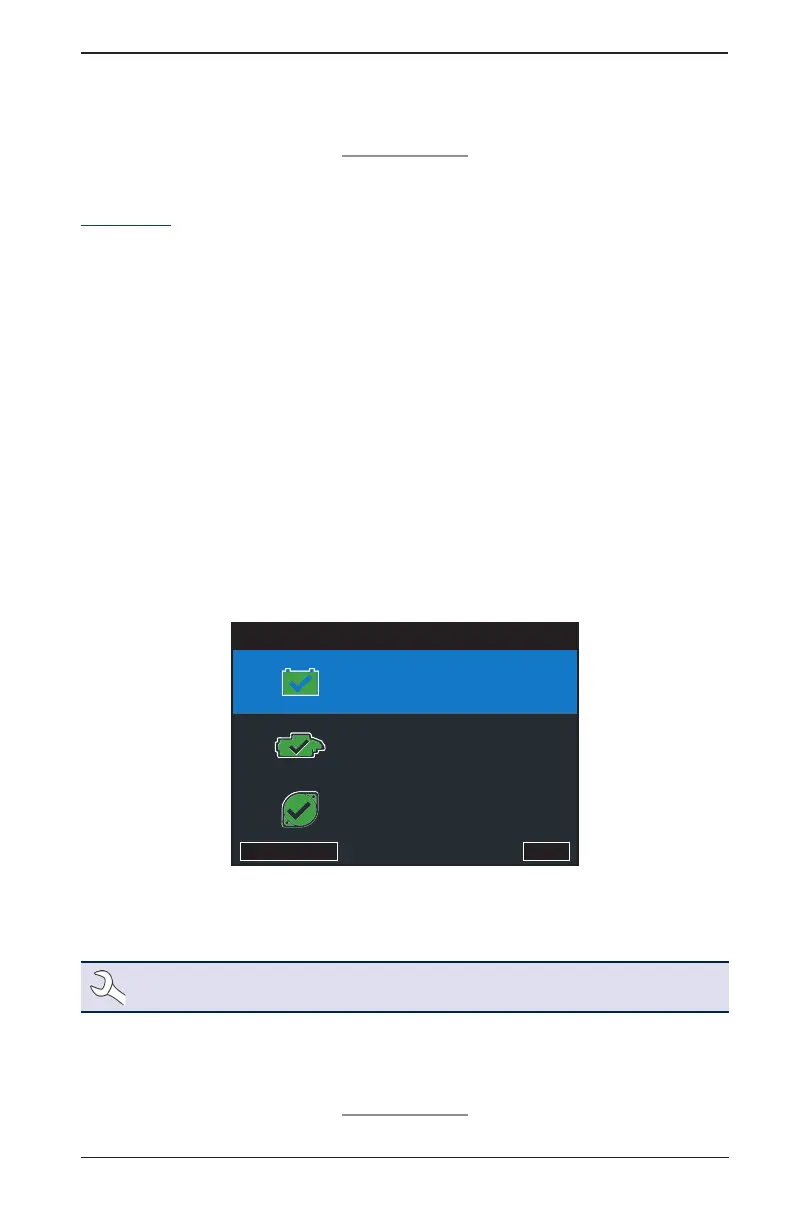

System Test Results
Test Results - Summary
Good Baery
Cranking Normal
Charging Normal
Send Results Done
Test Results - Summary
T
he Test Results - Summary screen is displayed following a System Test. Select the Battery, Cranking,
or Charging Test to view detailed test results for each part of the test.
NOTE: See Appendix B for complete parameter descriptions.
Select Send Results displayed at the bottom of the tester screen to send the test results to the
optional built-in printer or via email. Select Done
to return to the Main Menu.
Email
6
Printer
To Next Page
