1 – Introduction CPX-900

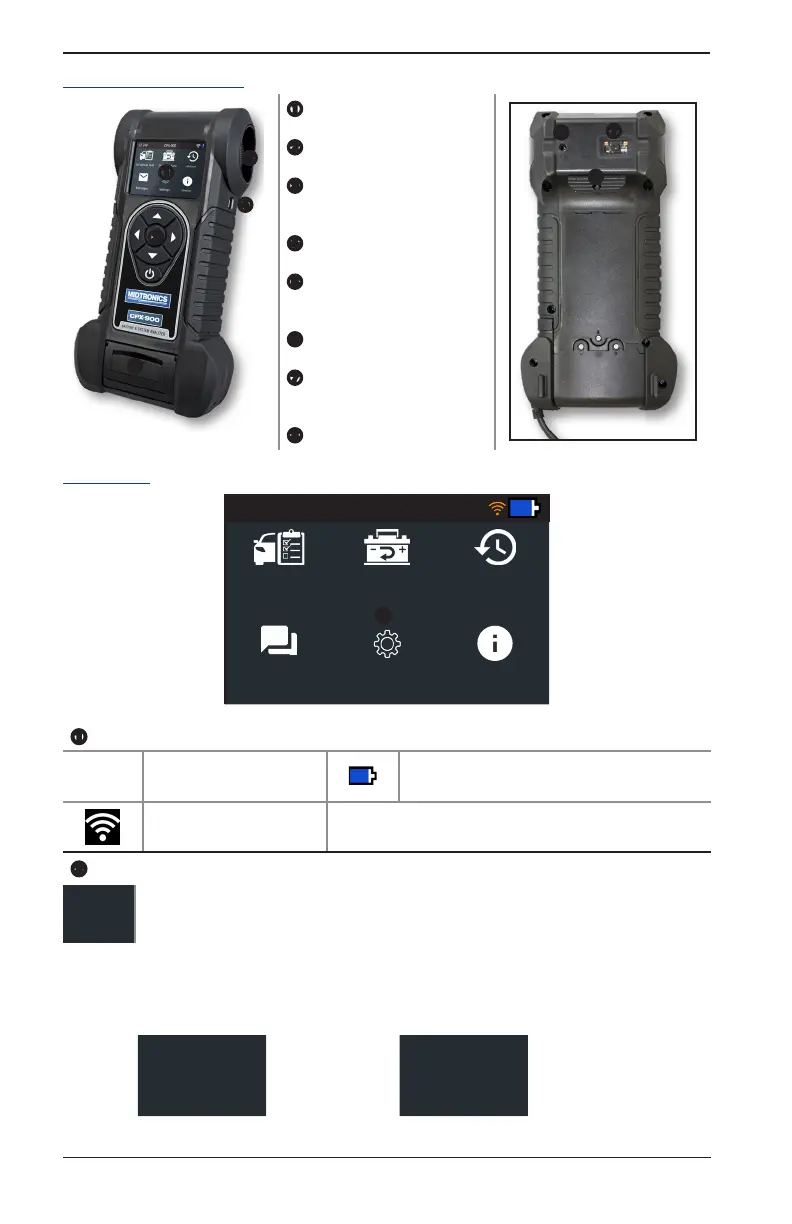

Controls & Connections





 Display Screen
 Cooling Vent
 Arrow Keys & Power But-
ton
 Mini-USB Port
 Thermal Printer
(optional)
 Temperature Sensor
 VIN Barcode Scanner
(optional)
 Clamp Tabs



Main Menu
12.74V CPX-900
In Vehicle Test
Out of Vehicle
Test
History
Messages
Sengs
Version


 Menu Bar
12.74V
Battery Voltage
(if connected)
Controller internal battery status
WiFi signal strength
 Main Menu Selection Area

When displayed, the Screen Arrows show which ARROW key on the keypad to press to
display other icons or screens. When displayed under a list of options, the Screen Arrows
show which keypad arrow to press to highlight a character or item in a list.
Additional Screens
The dots at the bottom or side of a menu or results screen indicate additional screens are available,
  Screen 1
   Screen 2
 Screen 3
Press  or 


Screen 1
Press  or 


Screen 2
