Chapter 2: In Vehicle TestDSS-5000 Toyota Lexus

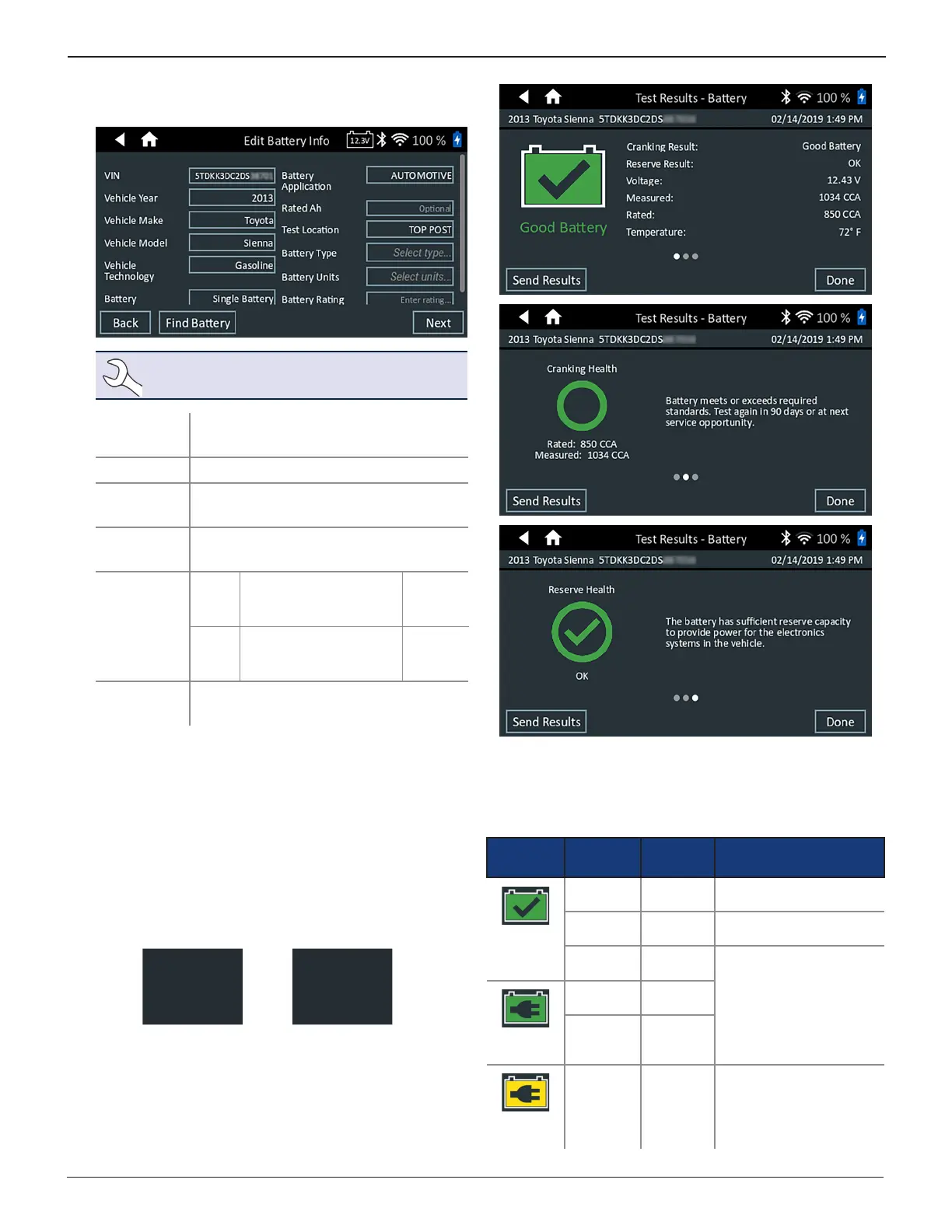

7. At the Edit Battery Info screen, tap on the corresponding
box to edit the parameter information.
NOTE: Battery Type, Units, and Rating must be
lled in before proceding.
Battery
Application
Automotive
Battery Post
Top Post
Test
Location
Top Post, Remote Post
Battery
Type
Flooded, AGM (Absorbed Glass Mat),
AGM Spiral, Gel, EFB
Battery
Rating
Units
CCA Cold Cranking Amps:
Battery current at 0 ºF
(–17.8 ºC).
100 to
3000
JIS Japanese Industrial
Standard: Usually
printed on battery label.
26A17 to
245H52
Battery
Rating
Enter the Battery Rating Units value.
8. Tap Next to begin the Battery Test.
Battery Test Results
The test results are displayed on the Controller screen.
Additional Screens
The dots at the bottom or side of a menu or results screen
indicate additional screens are available. Swipe horizontally
or vertically across the Controller screen to view additional
results screens.
 Screen 1
 Screen 2
 Screen 3


Screen 1


Screen 2
Swipe
Horizontally
Swipe
Vertically
Test Results - Battery Test
To print or send the test results to a congured printer tap
Send Results. To return to the Home Screen, tap Done or
System Test to continue with the System Test.
Decision
Cranking
Health
Reserve
Capacity
Description
Good
Battery
Good
Battery
Good
Battery
Battery meets or exceeds
required standards.
Good
Battery
Unknown
Reserve
Battery meets or exceeds
required standards.
Good
Recharge
Good
Battery
Battery is good, but low
on charge. Fully charge
the battery for optimal
performance and life. Check
for causes of low charge.
Good
Recharge
Charge &
Retest
Good
Battery
Good
Recharge
Unknown
Reserve
Charge &
Retest
Charge &
Retest
Unknown
Reserve
Battery requires charge to
determine condition.
