Chapter 1: IntroductionDSS-5000 Toyota Lexus

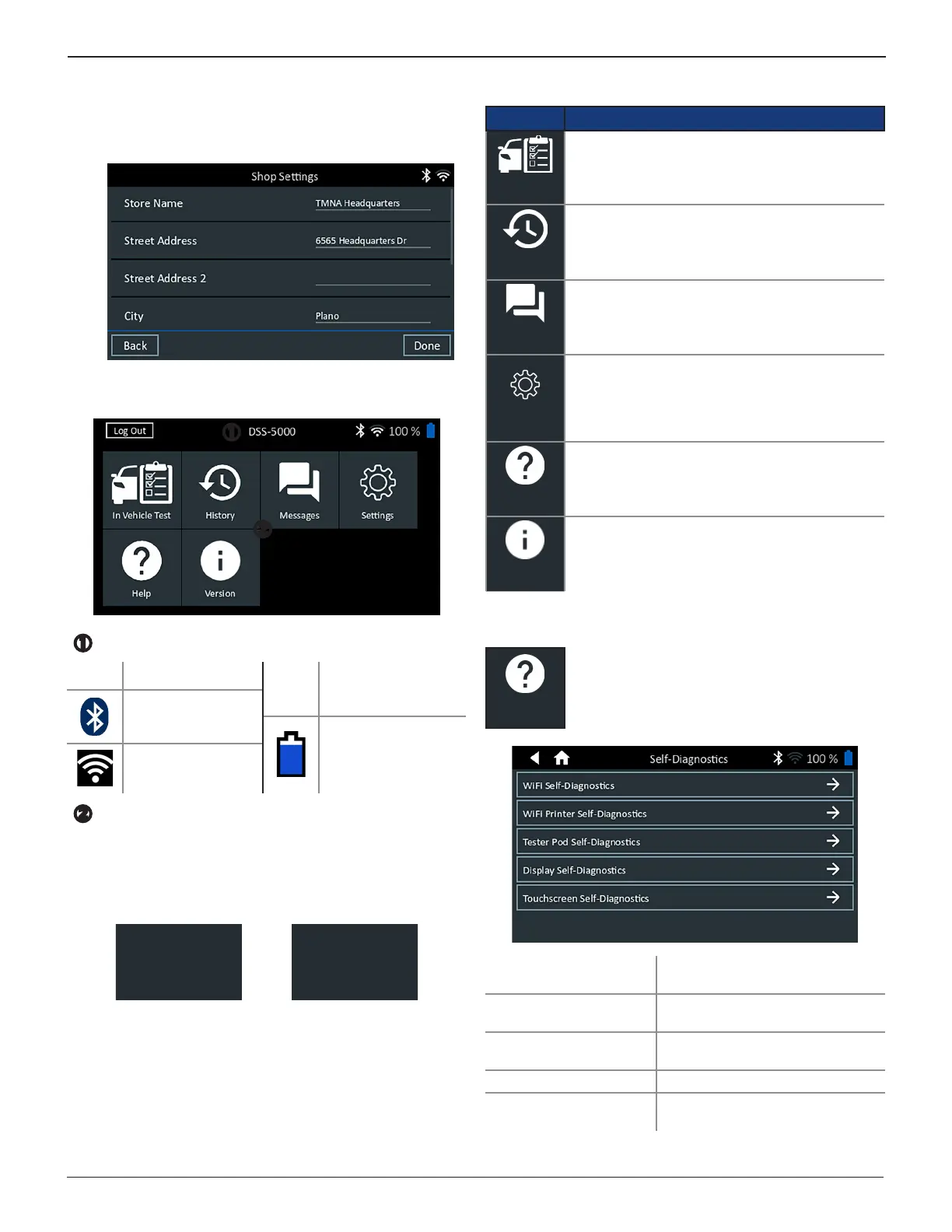

13. The Shop Information screen is displayed. Use the on-
screen keypad to enter the store name, address, and
phone number. Tap Next to continue. The Main Menu
screen is displayed.
Main Menu


 Menu Bar
Log Out
Log out current user
93%
Controller internal
battery level
Bluetooth
connectivity status
Controller internal
battery status
WiFi signal strength
 Main Menu Selection Area
Additional Screens
Swipe left, right, up or down across the Controller screen to
view all of the results.
 Screen 1
 Screen 2
 Screen 3


Screen 1


Screen 2
Swipe Horizontally Swipe Vertically
Main Menu Icons
Icon Description
In Vehicle Test
Perform Battery Tests on in-vehicle batteries using
test parameters determined by the vehicle VIN or
year, make, and model. A System Test (with the
option to use an Amp Clamp) is also available.
History
Access archived test histories or search test
history or by VIN.
Messages
Displays alerts and notications for upcoming
tests and activities including scheduled tests,
tool software updates and maintenance
opportunities.
Sengs
Setup/adjust: WiFi, printer setup, email settings,
user information, default language, display
and sound settings, BMIS information, shop
information, and connected devices. Also access
to tester software version information.
Help
Access the analyzer Self-Test and a digitized
version of the Instruction Manual that was shipped
with the analyzer.
Version
Access to tester software version information.
Support
Help
Use the Support function to access built-in Self-
Testing functions or to view a digitized version of
the Instruction Manual.
WiFi Self-Diagnostics Tests connectivity to the BMIS
server via the selected WiFi network
WiFi Printer
Self-Diagnostics
Use to congure a WiFi printer
Tester Pod
Self-Diagnostics
Check connectivity between the
Controller and the Tester Pod
Display Self-Diagnostics Tests Controller pixel display
Touchscreen
Self-Diagnostics
Tests Controller touchscreen
responsiveness
