Chapter 3: Applications (Apps)DSS-7000
This information is usually printed on the battery label.
Rating Description Range
CCA
Cold Cranking Amps: Battery
current at 0 ºF (–17.8 ºC).
100 to 3000
CA
Cranking Amps:
Battery current
at
32°F (0 ºC).
100 to 3000
JIS
Japanese Industrial Standard:
Usually printed on battery label.
26A17 to
245H52
DIN(A) Deutsche Industrie-Norm 100 to 1000
SAE(A)
European labeling of CCA
100 to 3000
IEC(A) International Electrotechnical
Commission
100 to 1000
EN(A) Europa-Norm 100 to 1700
EN2(A)
Europa-Norm 100 to 1700
Battery Rating
?
Tap on the box and use the keypad displayed on the
Tablet Controller to enter the battery rating.
NOTE: When JIS is selected, use the drop-down
menu to scroll to the correct JIS number.

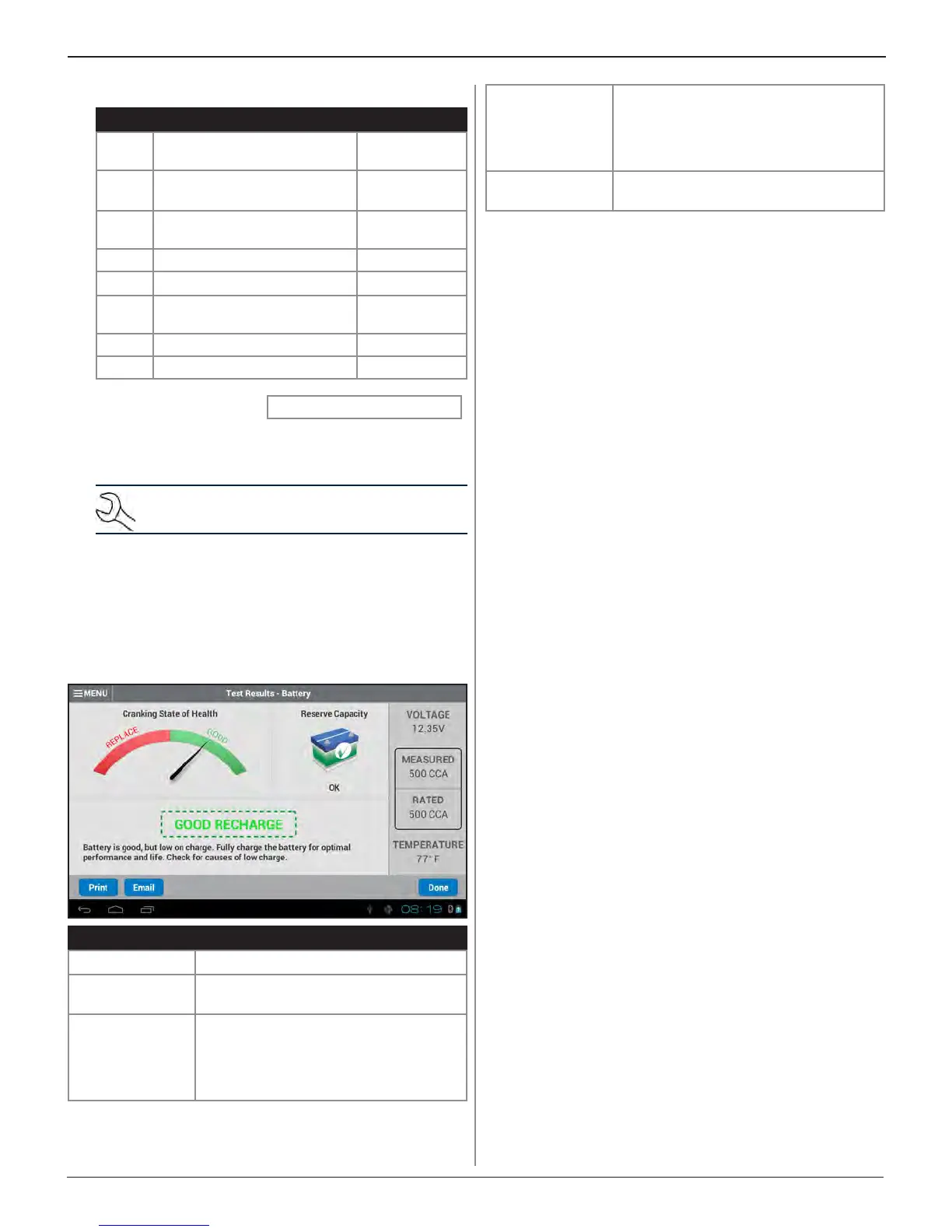

Battery Test Results
After the test the tester displays one of ve battery decisions
along with the complete results.
Tap PRINT to print the test results or EMAIL to email the
results to the customer. To return to the Home Screen, tap
DONE.
Decision Recommended Action
GOOD BATTERY Return the battery to service.
GOOD–
RECHARGE
Fully charge battery and return to
service.
CHARGE &
RETEST
Fully charge the battery and retest.
Failure to fully charge the battery
before retesting may cause false
readings. For a repeated CHARGE &
RETEST decision, replace battery.
REPLACE
BATTERY *
May also mean a poor connection
between battery cables and battery.
After disconnecting battery cables,
retest battery using Battery Test before
replacing.
BAD CELL–
REPLACE
Replace the battery and retest.
Pre Sale
Use the Pre Sale function to test each new battery before
customer purchase to conrm it is good and prevent potential
customer service or warranty issues.
1. Tap Pre Sale icon.
2. Connect the test clamps to the battery and tap Continue.
3. Hold the Diagnostic Device over the battery and tap Cap-
ture Temperature. Once the battery temperature has
been successfully measured, tap Continue.
4. Enter the battery testing parameters. Tap Continue when
nished.
Battery Post
TOP POST
SIDE POST
DUAL POST
Battery Application
AUTOMOTIVE
MARINE BATTERY
POWERSPORT
GROUP 31
COMMERCIAL 4D/8D
LAWN & GARDEN
Battery Type
FLOODED
AGM
AGM/SPIRAL
GEL
