Miele EBA 5570 - Page 2

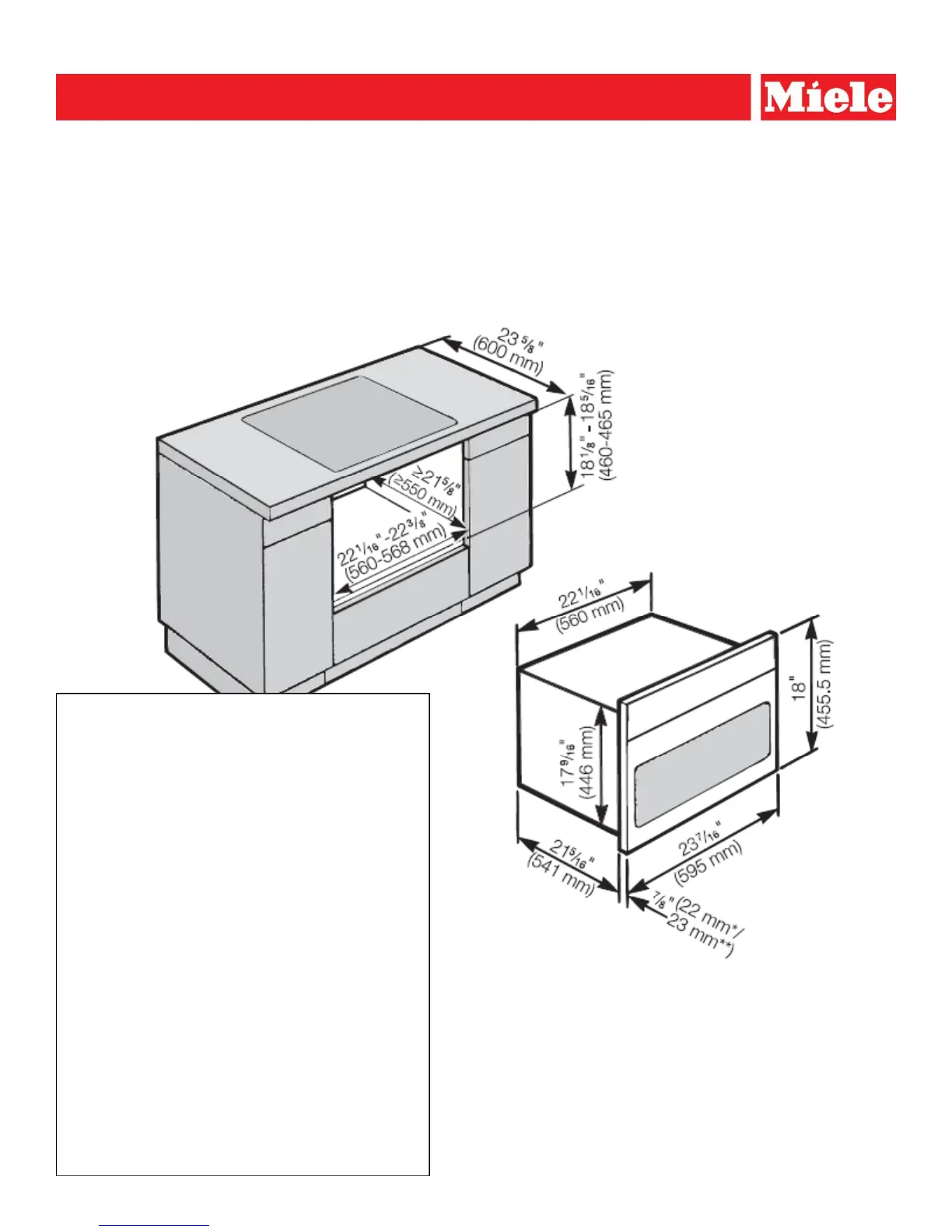

Product and Cut-out Dimensions Page 2 of 4
Convection Microwave Oven
When installed under a cooktop regard the installation
instructions and dimensions of the cooktop
Miele appliances can be installed flush or
proud. Discuss your installation requirements
with your architect, designer and installer.
H 4084 Classic Desi
g
n with DS 4045 Si
g
nature Series Handle
H 4086 Europa Design with DS 4043 Square Series Handle
Location Codes
E – The oven comes equipped with a 5.7 ft.
(1.7 m)
power cord with a
E
NEMA 14-30 P molded plug ready for
connection to a:
120/240V, 20 A, 60 Hz power supply
or
120/208V, 20 A, 60 Hz power supply.
O – 2 ½” ² minimum hole size for plug. Outlet to be
installed in adjacent cabinetry
* Appliances with glass front
installed in adjacent cabinetry
Notes
Width w
ith optional Classic EBA Trim Kits:
22996178USA EBA 5470 27 3/8” Width
26” – 26 ¼” Cabinet Cutout
22996179USA EBA 5476 29 13/16” Width
28 ¾” – 28 ½” Cabinet Cutout
Note: Drawing is not to scale
Specification Sheets OJS 11112011
** Appliances with metal front
Please view page 4
Width with optional Europa EBA Trim Kits:
22996191USA EBA 5570 27 3/8” Width
26” – 26 ¼” Cabinet Cutout
22996192USA EBA 5576 29 13/16” Width
28 ¾” – 28 ½” Cabinet Cutout
All installations must be done in
accordance with local codes.
