Miele EBA 5570 - Page 4

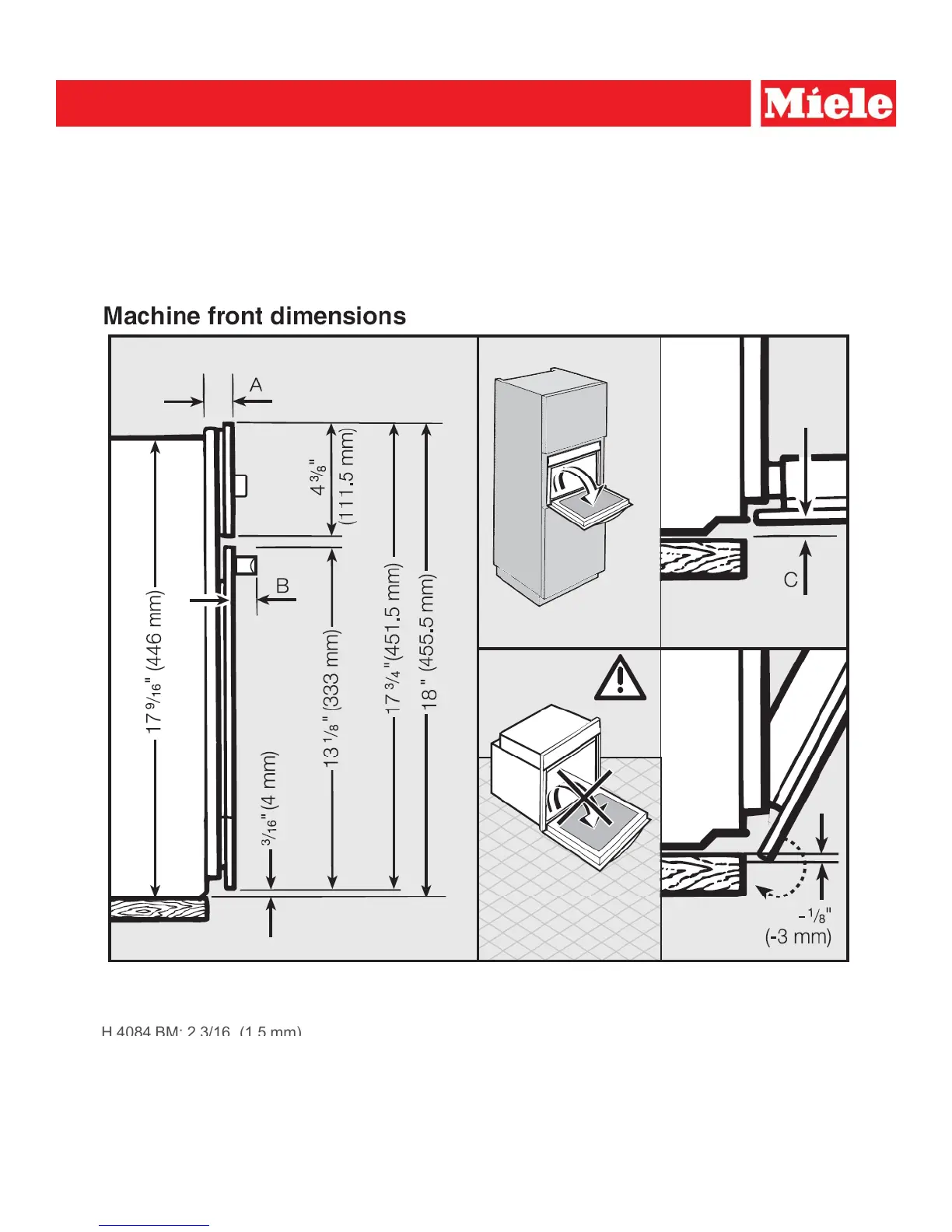

Product and Cut-out Dimensions Page 4 of 4
Convection Microwave Oven
Convection
Microwave
Oven
H 4084 Classic Design with DS 4045 Signature Series Handle
H 4086 Europa Design with DS 4043 Square Series Handle
A 7/8” (Appliance with glass front: 22 mm / Appliance with metal front: 23 mm)
B
H 4084 BM: 2 3/16
”
(1 5 mm)
Note: Drawing is not to scale
Specification Sheets OJS 11112011
B
H
4084
BM:
2
3/16
(1
.
5
mm)
H 4086 BM: 1 7/8” (47.5 mm)
C Appliances with glass front: 1/16” (1.5 mm)
Appliances with metal front: 1/32” (0.5 mm)
